Page 3 - Kubota - 6200

6200

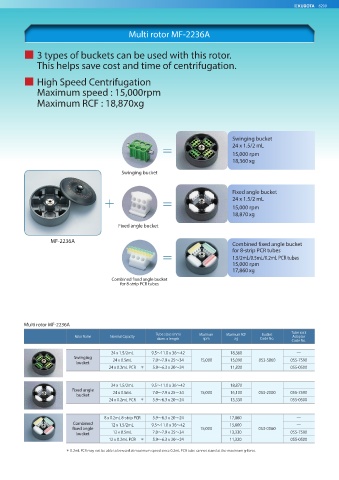

Multi rotor MF-2236A

■ 3 types of buckets can be used with this rotor.

This helps save cost and time of centrifugation.

■ High Speed Centrifugation
Maximum speed : 15,000rpm

Maximum RCF : 18,870xg

Swinging bucket
＝ 24 x 1.5/2 mL
15,000 rpm
18,360 xg
Swinging bucket

Fixed angle bucket
＋ ＝ 24 x 1.5/2 mL
15,000 rpm
18,870 xg

Fixed angle bucket

MF-2236A
Combined fixed angle bucket
for 8-strip PCR tubes
＝ 1.5/2mL/0.5mL/0.2mL PCR tubes
15,000 rpm
17,860 xg
Combined fixed angle bucket
for 8-strip PCR tubes

Multi rotor MF-2236A
Tube rack
Tube sizes (mm) Maximum Maximum RCF Bucket
Rotor Name Nominal Capacity Adaptor
diam. x length rpm xg Code No.
Code No.
24 x 1.5/2mL 9.5〜11.0 x 36〜42 18,360 ―
Swinging 24 x 0.5mL 7.0〜7.9 x 25〜34 15,000 15,090 053-5860 055-7590
bucket
24 x 0.2mL PCR ＊ 5.9〜6.3 x 20〜24 11,820 055-0500

24 x 1.5/2mL 9.5〜11.0 x 36〜42 18,870 ―
Fixed angle
bucket 24 x 0.5mL 7.0〜7.9 x 25〜34 15,000 16,100 053-2000 055-7590
24 x 0.2mL PCR ＊ 5.9〜6.3 x 20〜24 13,330 055-0500

8 x 0.2mL 8-strip PCR 5.9〜6.3 x 20〜24 17,860 ―
Combined 12 x 1.5/2mL 9.5〜11.0 x 36〜42 15,600 ―
fixed angle 15,000 053-0060
bucket 12 x 0.5mL 7.0〜7.9 x 25〜34 13,330 055-7590
12 x 0.2mL PCR ＊ 5.9〜6.3 x 20〜24 11,320 055-0500
＊ 0.2mL PCR may not be able to be used at maximum speed since 0.2mL PCR tube cannot stand at the maximum g-force.
