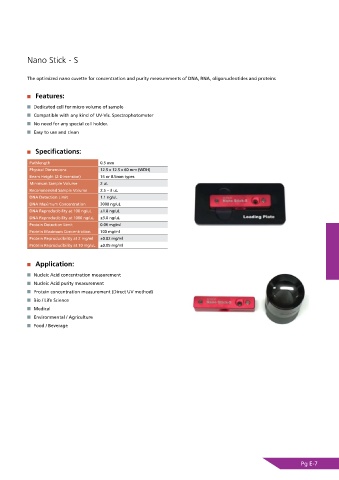

Page 247 - Shimadu Consumables Catalog
P. 247
Nano Stick - S
The optimized nano cuvette for concentration and purity measurements of DNA, RNA, oligonucleotides and proteins
Features:
Dedicated cell for micro volume of sample
Compatible with any kind of UV-Vis. Spectrophotometer
No need for any special cell holder.
Easy to use and clean
Specifications:
Pathlength 0.5 mm
Physical Dimensions 12.5 x 12.5 x 60 mm (WDH)
Beam Height (Z-Dimension) 15 or 8.5mm types
Minimum Sample Volume 2 uL
Recommended Sample Volume 2.5 – 3 uL
DNA Detection Limit 1.1 ng/uL
DNA Maximum Concentration 3000 ng/uL
DNA Reproducibility at 100 ng/uL ±1.0 ng/uL
DNA Reproducibility at 1000 ng/uL ±3.0 ng/uL
Protein Detection Limit 0.06 mg/ml
Protein Maximum Concentration 100 mg/ml
Protein Reproducibility at 2 mg/ml ±0.02 mg/ml
Protein Reproducibility at 10 mg/uL ±0.05 mg/ml
Application:
Nucleic Acid concentration measurement
Nucleic Acid purity measurement
Protein concentration measurement (Direct UV method)
Bio / Life Science
Medical
Environmental / Agriculture
Food / Beverage
