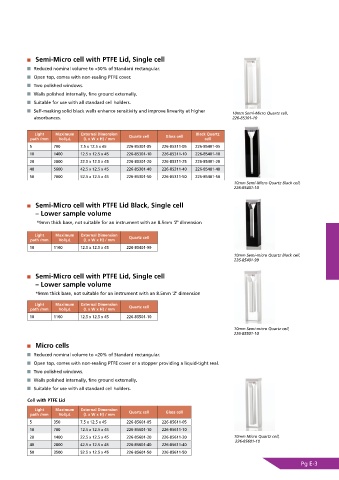

Semi-Micro cell with PTFE Lid, Single cell
Reduced nominal volume to <50% of Standard rectangular.
Open top, comes with non-sealing PTFE cover.
Two polished windows.
Walls polished internally, fine ground externally.
Suitable for use with all standard cell holders.
Self-masking solid black walls enhance sensitivity and improve linearity at higher
10mm Semi-Micro Quartz cell,
absorbances. 226-85301-10

Light Maximum External Dimension Black Quartz
path /mm Vol/µL (L x W x H) / mm Quartz cell Glass cell cell
5 700 7.5 x 12.5 x 45 226-85301-05 226-85311-05 226-85401-05
10 1400 12.5 x 12.5 x 45 226-85301-10 226-85311-10 226-85401-10
20 2800 22.5 x 12.5 x 45 226-85301-20 226-85311-25 226-85401-20
40 5600 42.5 x 12.5 x 45 226-85301-40 226-85311-40 226-85401-40
50 7000 52.5 x 12.5 x 45 226-85301-50 226-85311-50 226-85401-50
10mm Semi-Micro Quartz Black cell,
226-85401-10

Semi-Micro cell with PTFE Lid Black, Single cell
– Lower sample volume
*9mm thick base, not suitable for an instrument with an 8.5mm 'Z' dimension

Light Maximum External Dimension
path /mm Vol/µL (L x W x H) / mm Quartz cell
10 1160 12.5 x 12.5 x 45 226-85401-99
10mm Semi-micro Quartz Black cell,
226-85401-99

Semi-Micro cell with PTFE Lid, Single cell
– Lower sample volume
*9mm thick base, not suitable for an instrument with an 8.5mm 'Z' dimension

Light Maximum External Dimension Quartz cell
path /mm Vol/µL (L x W x H) / mm
10 1160 12.5 x 12.5 x 45 226-85501-10

10mm Semi-micro Quartz cell,
226-85501-10
Micro cells
Reduced nominal volume to <20% of Standard rectangular.
Open top, comes with non-sealing PTFE cover or a stopper providing a liquid-tight seal.
Two polished windows.
Walls polished internally, fine ground externally.
Suitable for use with all standard cell holders.
Cell with PTFE Lid
Light Maximum External Dimension
path /mm Vol/µL (L x W x H) / mm Quartz cell Glass cell
5 350 7.5 x 12.5 x 45 226-85601-05 226-85611-05
10 700 12.5 x 12.5 x 45 226-85601-10 226-85611-10
20 1400 22.5 x 12.5 x 45 226-85601-20 226-85611-20 10mm Micro Quartz cell,
226-85601-10
40 2800 42.5 x 12.5 x 45 226-85601-40 226-85611-40
50 3500 52.5 x 12.5 x 45 226-85601-50 226-85611-50
