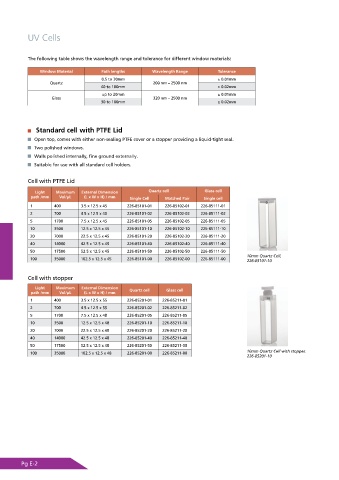

Page 242 - Shimadu Consumables Catalog

UV Cells

The following table shows the wavelength range and tolerance for different window materials:

Window Material Path lengths Wavelength Range Tolerance
0.5 to 30mm ± 0.01mm
Quartz 200 nm – 2500 nm
40 to 100mm ± 0.02mm
up to 20mm ± 0.01mm
Glass 320 nm – 2500 nm
30 to 100mm ± 0.02mm

Standard cell with PTFE Lid
Open top, comes with either non-sealing PTFE cover or a stopper providing a liquid-tight seal.
Two polished windows.
Walls polished internally, fine ground externally.
Suitable for use with all standard cell holders.

Cell with PTFE Lid

Light Maximum External Dimension Quartz cell Glass cell
path /mm Vol/µL (L x W x H) / mm Single Cell Matched Pair Single cell
1 400 3.5 x 12.5 x 45 226-85101-01 226-85102-01 226-85111-01
2 700 4.5 x 12.5 x 45 226-85101-02 226-85102-02 226-85111-02
5 1700 7.5 x 12.5 x 45 226-85101-05 226-85102-05 226-85111-05
10 3500 12.5 x 12.5 x 45 226-85101-10 226-85102-10 226-85111-10
20 7000 22.5 x 12.5 x 45 226-85101-20 226-85102-20 226-85111-20
40 14000 42.5 x 12.5 x 45 226-85101-40 226-85102-40 226-85111-40
50 17500 52.5 x 12.5 x 45 226-85101-50 226-85102-50 226-85111-50
10mm Quartz Cell,
100 35000 102.5 x 12.5 x 45 226-85101-00 226-85102-00 226-85111-00
226-85101-10
Cell with stopper

Light Maximum External Dimension Quartz cell Glass cell
path /mm Vol/µL (L x W x H) / mm
1 400 3.5 x 12.5 x 55 226-85201-01 226-85211-01
2 700 4.5 x 12.5 x 55 226-85201-02 226-85211-02
5 1700 7.5 x 12.5 x 48 226-85201-05 226-85211-05
10 3500 12.5 x 12.5 x 48 226-85201-10 226-85211-10
20 7000 22.5 x 12.5 x 48 226-85201-20 226-85211-20
40 14000 42.5 x 12.5 x 48 226-85201-40 226-85211-40
50 17500 52.5 x 12.5 x 48 226-85201-50 226-85211-50
100 35000 102.5 x 12.5 x 48 226-85201-00 226-85211-00 10mm Quartz Cell with stopper,
226-85201-10
