Page 239 - Shimadu Consumables Catalog

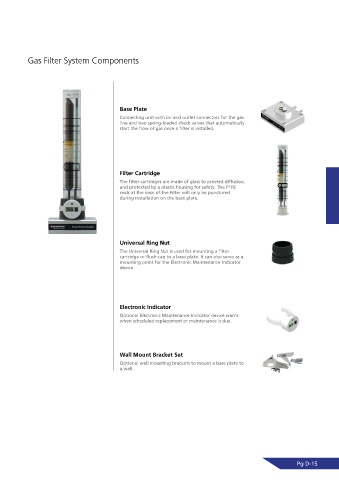

Capillary Column Cutters Gas Filter System Components

Catalog No. 226-50700-00
SHORTIX GC
TM
Specifications
In Gas chromatography, the Glass Base Plate
Usable For Fused Silica Capillary Column Quick-Fit connection is often used Connecting unit with in- and outlet connectors for the gas
Ø 0.5 Use with 0.25mm ID to (e.g. for Retention Gaps, Guard line and two spring-loaded check valves that automatically
0.53mm ID tubing (0.78mm OD Columns). This connection will only start the flow of gas once a filter is installed.
maximum). be leak-tight when the column is cut
Dimensions 9.2 cm x 1.7 cm x 1.7 cm extremely straight and without any
damage to the fused-silica column
Weight 94 g wall.

Filter Cartridge
The filter cartridges are made of glass to prevent diffusion,
and protected by a plastic housing for safety. The PTFE
seals at the base of the Filter will only be punctured
Catalog No. 226-50700-01 during installation on the base plate.
SHORTIX TM CE-CEC
Specifications
For CE/CEC analyses, a clean and
Usable For Fused Silica Capillary Column Ø
0.25micron straight cut of the capillary column
is needed to assure symetrical
Dimensions 9.7 cm x 1.7 cm x 1.7 cm Field-Strength over the inlet of the
Weight 94 g column. When there is no symetrical Universal Ring Nut
Field-Strength, the analytical results
will be non-reproducible. The Universal Ring Nut is used for mounting a filter
cartridge or flush-cap to a base plate. It can also serve as a
mounting point for the Electronic Maintenance Indicator
device.

MAINTENANCE KIT Electronic Indicator
Catalog No. 226-50700-10
FOR SHORTIX TM GC Optional Electronic Maintenance Indicator device warns
Specifications when scheduled replacement or maintenance is due.
Includes diamond cutting wheel,
Usable For Shortix GC O-rings and a tool to open the
TM
column cutter.

Wall Mount Bracket Set
Optional wall mounting brackets to mount a base plate to
a wall.

MAINTENANCE KIT FOR
Catalog No. 226-50700-11
SHORTIX CE-CEC
TM
Specifications
Includes diamond cutting wheel,
Usable For Shortix CE-CEC O-rings and a tool to open the
TM
column cutter.

Pg D-15
