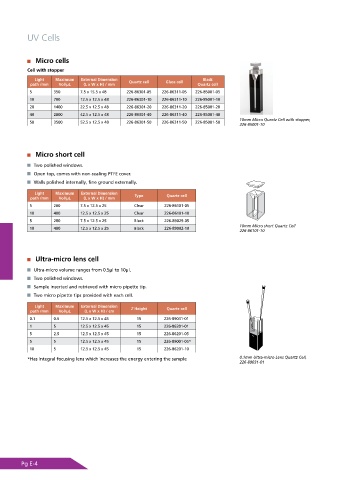

Page 244 - Shimadu Consumables Catalog

UV Cells

Micro cells

Cell with stopper
Light Maximum External Dimension Black
path /mm Vol/µL (L x W x H) / mm Quartz cell Glass cell Quartz cell
5 350 7.5 x 15.5 x 48 226-86301-05 226-86311-05 226-85001-05
10 700 12.5 x 12.5 x 48 226-86301-10 226-86311-10 226-85001-10
20 1400 22.5 x 12.5 x 48 226-86301-20 226-86311-20 226-85001-20
40 2800 42.5 x 12.5 x 48 226-86301-40 226-86311-40 226-85001-40
10mm Micro Quartz Cell with stopper,
50 3500 52.5 x 12.5 x 48 226-86301-50 226-86311-50 226-85001-50
226-85001-10

Micro short cell

Two polished windows.
Open top, comes with non-sealing PTFE cover.
Walls polished internally, fine ground externally.

Light Maximum External Dimension
path /mm Vol/µL (L x W x H) / mm Type Quartz cell
5 200 7.5 x 12.5 x 25 Clear 226-86101-05
10 400 12.5 x 12.5 x 25 Clear 226-86101-10
5 200 7.5 x 12.5 x 25 Black 226-89029-05
10mm Micro short Quartz Cell
10 400 12.5 x 12.5 x 25 Black 226-89002-10
226-86101-10

Ultra-micro lens cell
Ultra-micro volume ranges from 0.5μl to 10μl.
Two polished windows.
Sample inserted and retrieved with micro pipette tip.
Two micro pipette tips provided with each cell.

Light Maximum External Dimension
path /mm Vol/µL (L x W x H) / cm Z Height Quartz cell
0.1 0.5 12.5 x 12.5 x 45 15 226-89031-01
1 5 12.5 x 12.5 x 45 15 226-86201-01
5 2.5 12.5 x 12.5 x 45 15 226-86201-05
5 5 12.5 x 12.5 x 45 15 226-89001-05*
10 5 12.5 x 12.5 x 45 15 226-86201-10
*Has integral focusing lens which increases the energy entering the sample 0.1mm Ultra-micro Lens Quartz Cell,
226-89031-01

Pg E-4
