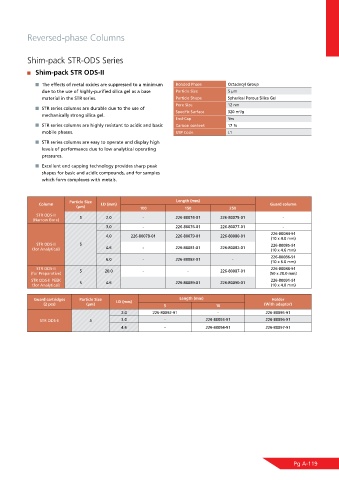

Page 123 - Shimadu Consumables Catalog

Reversed-phase Columns

Shim-pack STR-ODS Series

Shim-pack STR ODS-II

The effects of metal oxides are suppressed to a minimum Bonded Phase Octadecyl Group
due to the use of highly-purified silica gel as a base Particle Size 5 μm
material in the STR series. Particle Shape Spherical Porous Silica Gel
Pore Size 12 nm
STR series columns are durable due to the use of Specific Surface 320 m /g
2
mechanically strong silica gel.
End-Cap Yes
STR series columns are highly resistant to acidic and basic Carbon content 17 %
mobile phases. USP Code L1

STR series columns are easy to operate and display high
levels of performance due to low analytical operating
pressures.
Excellent end capping technology provides sharp peak
shapes for basic and acidic compounds, and for samples
which form complexes with metals.

Particle Size Length (mm)
Column I.D (mm) Guard column
(μm) 100 150 250
STR ODS-II
(Narrow Bore) 5 2.0 - 226-80074-01 226-80075-01 -
3.0 - 226-80076-01 226-80077-01 -
226-80084-91
4.0 226-80078-01 226-80079-01 226-80080-01
(10 x 4.0 mm)
STR ODS-II 5 226-80085-91
(for Analytical) 4.6 - 226-80081-01 226-80082-01 (10 x 4.6 mm)
226-80086-91
6.0 - 226-80083-01 -
(10 x 6.0 mm)
STR ODS-II 226-80088-91
(for Preparative) 5 20.0 - - 226-80087-01 (50 x 20.0 mm)
STR ODS-II PEEK 5 4.6 226-80089-01 226-80090-01 226-80091-91
(for Analytical) (10 x 4.0 mm)

Guard cartridges Particle Size Length (mm) Holder
(2 pcs) (μm) I.D (mm) 5 10 (With adaptor)
2.0 226-80092-91 - 226-80095-91
STR ODS-II 5 3.0 - 226-80093-91 226-80096-91
4.6 - 226-80094-91 226-80097-91

Pg A-119
