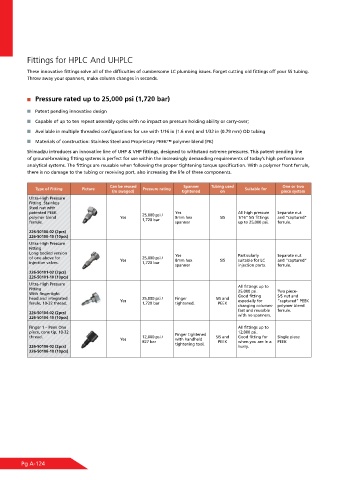

Page 128 - Shimadu Consumables Catalog

Fittings for HPLC And UHPLC

These innovative fittings solve all of the difficulties of cumbersome LC plumbing issues. Forget cutting old fittings off your SS tubing.
Throw away your spanners, make column changes in seconds.

Pressure rated up to 25,000 psi (1,720 bar)

Patent pending innovative design
Capable of up to ten repeat assembly cycles with no impact on pressure holding ability or carry-over;
Available in multiple threaded configurations for use with 1/16 in (1.6 mm) and 1/32 in (0.79 mm) OD tubing
Materials of construction: Stainless Steel and Proprietary PEEK™ polymer blend (PK)

Shimadzu introduces an innovative line of UHP & VHP fittings, designed to withstand extreme pressures. This patent-pending line
of ground-breaking fitting systems is perfect for use within the increasingly demanding requirements of today’s high performance
analytical systems. The fittings are reusable when following the proper tightening torque specification. With a polymer front ferrule,
there is no damage to the tubing or receiving port, also increasing the life of these components.

Can be reused Spanner Tubing used One or two
Type of Fitting Picture Pressure rating Suitable for
(re swaged) tightened on piece system
Ultra-High Pressure
Fitting. Stainless
Steel nut with
patented PEEK 25,000 psi / Yes All high pressure Separate nut
polymer blend Yes 1,720 bar 8mm hex S/S 1/16” S/S fittings and “captured”
ferrule. spanner up to 25,000 psi. ferrule.
226-50100-02 (2pcs)
226-50100-10 (10pcs)
Ultra-High Pressure
Fitting
Long bodied version Yes Particularly Separate nut
of one above for Yes 25,000 psi / 8mm hex S/S suitable for LC and “captured”
injection valves. 1,720 bar
spanner injection ports. ferrule.
226-50101-02 (2pcs)
226-50101-10 (10pcs)
Ultra-High Pressure
Fitting All fittings up to Two piece-
25,000 psi.
With fingertight Good fitting S/S nut and
head and integrated Yes 25,000 psi / Finger S/S and especially for “captured” PEEK
ferule, 10-32 thread. 1,720 bar tightened. PEEK
changing columns- polymer blend
fast and reusable ferrule.
226-50104-02 (2pcs) with no spanners.
226-50104-10 (10pcs)
Finger 1 – Peek One All fittings up to
piece, cone tip, 10-32 Finger tightened 12,000 psi.
thread. 12,000 psi / S/S and Good fitting for Single piece
Yes with handheld
827 bar PEEK when you are in a PEEK
226-50106-02 (2pcs) tightening tool. hurry.
226-50106-10 (10pcs)

Pg A-124
