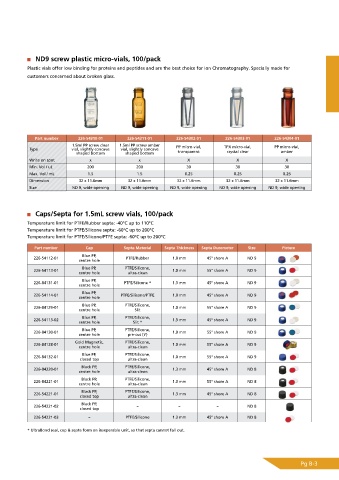

Page 131 - Shimadu Consumables Catalog

ND9 screw plastic micro-vials, 100/pack
Plastic vials offer low binding for proteins and peptides and are the best choice for Ion Chromatography. Specially made for
customers concerned about broken glass.

Part number 226-54310-01 226-54311-01 226-54302-01 226-54303-01 226-54304-01
1.5ml PP screw clear 1.5ml PP screw amber PP micro-vial, TPX micro-vial, PP micro-vial,
Type vial, slightly concave vial, slightly concave
shaped bottom shaped bottom transparent crystal clear amber
Write on spot x x X X X
Min. Vol / uL 200 200 30 30 30
Max. Vol / mL 1.5 1.5 0.25 0.25 0.25
Dimension 32 x 11.6mm 32 x 11.6mm 32 x 11.6mm 32 x 11.6mm 32 x 11.6mm
Size ND 9, wide opening ND 9, wide opening ND 9, wide opening ND 9, wide opening ND 9, wide opening

Caps/Septa for 1.5mL screw vials, 100/pack
Temperature limit for PTFE/Rubber septa: -40°C up to 110°C
Temperature limit for PTFE/Silicone septa: -60°C up to 200°C
Temperature limit for PTFE/Silicone/PTFE septa: -60ºC up to 200ºC

Part number Cap Septa Material Septa Thickness Septa Durometer Size Picture
Blue PP,
226-54112-01 PTFE/Rubber 1.0 mm 45° shore A ND 9
centre hole
Blue PP, PTFE/Silicone,
226-54113-01 1.0 mm 55° shore A ND 9
centre hole ultra-clean
Blue PP,
226-84131-01 PTFE/Silicone * 1.3 mm 45° shore A ND 9
centre hole
Blue PP,
226-54114-01 PTFE/Silicone/PTFE 1.0 mm 45° shore A ND 9
centre hole
Blue PP, PTFE/Silicone,
226-84129-01 1.0 mm 55° shore A ND 9
centre hole Slit
Blue PP, PTFE/Silicone,
226-54113-02 1.3 mm 45° shore A ND 9
centre hole Slit *
Blue PP, PTFE/Silicone,
226-84130-01 1.0 mm 55° shore A ND 9
centre hole pre-cut (Y)
Gold Magnetic, PTFE/Silicone,
226-84128-01 1.0 mm 55° shore A ND 9
centre hole ultra-clean
Blue PP, PTFE/Silicone,
226-84132-01 1.0 mm 55° shore A ND 9
closed top ultra-clean
Black PP, PTFE/Silicone,
226-84220-01 1.3 mm 45° shore A ND 8
centre hole ultra-clean
Black PP, PTFE/Silicone,
226-84221-01 1.3 mm 55° shore A ND 8
centre hole ultra-clean
Black PP, PTFE/Silicone,
226-54221-01 1.3 mm 45° shore A ND 8
closed top ultra-clean
Black PP,
226-54221-02 - - - ND 8
closed top
226-54221-03 - PTFE/Silicone 1.3 mm 45° shore A ND 8
* UltraBond seal, cap & septa form an inseparable unit, so that septa cannot fall out.
