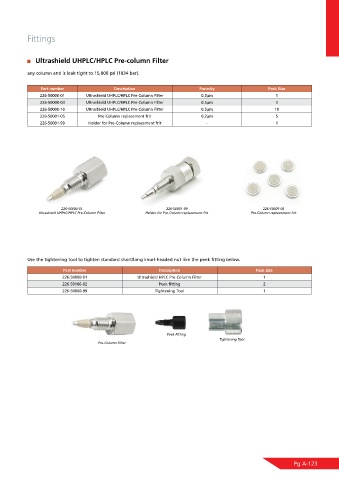

Page 127 - Shimadu Consumables Catalog

Fittings

Ultrashield UHPLC/HPLC Pre-column Filter

any column and is leak tight to 15,000 psi (1034 bar).

Part number Description Porosity Pack Size
226-50000-01 Ultrashield UHPLC/HPLC Pre-Column Filter 0.5µm 1
226-50000-03 Ultrashield UHPLC/HPLC Pre-Column Filter 0.5µm 3
226-50000-10 Ultrashield UHPLC/HPLC Pre-Column Filter 0.5µm 10
226-50001-05 Pre-Column replacement frit 0.2µm 5
226-50001-99 Holder for Pre-Column replacement frit - 1

226-50000-01 226-50001-99 226-50001-05
Ultrashield UHPLC/HPLC Pre-Column Filter Holder for Pre-Column replacement frit Pre-Column replacement frit

Use the tightening tool to tighten standard short/long knurl-headed nut like the peek fitting below.

Part number Description Pack size
226-50000-01 Ultrashield HPLC Pre-Column Filter 1
226-50106-02 Peek fitting 2
226-50000-99 Tightening Tool 1

Peek Fitting
Tightening Tool
Pre-Column Filter

Pg A-123
