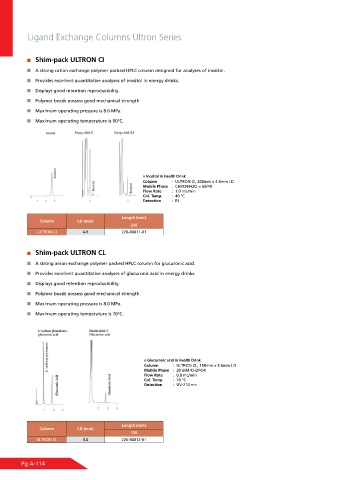

Page 118 - Shimadu Consumables Catalog

Ligand Exchange Columns Ultron Series

Shim-pack ULTRON CI

A strong cation exchange polymer packed HPLC column designed for analyses of inositol.
Provides excellent quantitative analyses of inositol in energy drinks.
Displays good retention reproducibility.

Polymer beads possess good mechanical strength.
Maximum operating pressure is 8.0 MPa.
Maximum operating temperature is 90°C.

Inositol in Health Drink
Column : ULTRON CI, 200mm x 4.6mm I.D
Mobile Phase : CH3CN/H2O = 60/40
Flow Rate : 1.0 mL/min
Col. Temp. : 40 °C
Detection : RI

Length (mm)
Column I.D (mm)
250
ULTRON CI 4.6 226-80011-01

Shim-pack ULTRON CL

A strong anion exchange polymer packed HPLC column for glucuronic acid.
Provides excellent quantitative analyses of glucuronic acid in energy drinks.

Displays good retention reproducibility.
Polymer beads possess good mechanical strength.
Maximum operating pressure is 8.0 MPa.
Maximum operating temperature is 70°C.

Glucuronic acid in Health Drink
Column : ULTRON CL, 150mm x 4.6mm I.D
Mobile Phase : 20 mM KH2PO4
Flow Rate : 0.8 mL/min
Col. Temp. : 70 °C
Detection : UV-210 nm

Length (mm)
Column I.D (mm)
150
ULTRON CL 4.0 226-80012-01

Pg A-114
