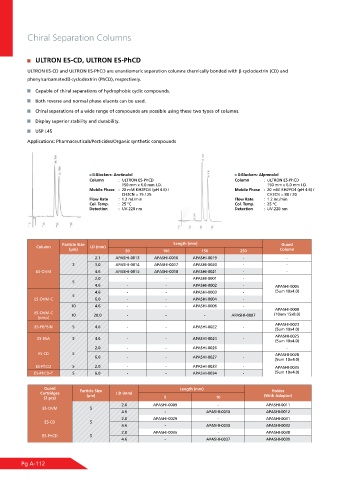

Page 116 - Shimadu Consumables Catalog

Chiral Separation Columns

ULTRON ES-CD, ULTRON ES-PhCD

ULTRON ES-CD and ULTRON ES-PhCD are enantiomeric separation columns chemically bonded with β-cyclodextrin (CD) and
phenylcarbamated β-cyclodextrin (PhCD), respectively.
Capable of chiral separations of hydrophobic cyclic compounds.

Both reverse and normal phase eluents can be used.
Chiral separations of a wide range of compounds are possible using these two types of columns.
Display superior stability and durability.
USP L45
Applications: Pharmaceuticals/Pesticides/Organic synthetic compounds

γ-Blockers: Arotinolol γ-Blockers: Alprenolol
Column : ULTRON ES-PhCD Column : ULTRON ES-PhCD
150 mm x 6.0 mm I.D. 150 mm x 6.0 mm I.D.
Mobile Phase : 20 mM KH2PO4 (pH 4.6) / Mobile Phase : 20 mM KH2PO4 (pH 4.6) /
CH3CN = 75 / 25 CH3CN = 80 / 20
Flow Rate : 1.2 mL/min Flow Rate : 1.2 mL/min
Col. Temp. : 25 °C Col. Temp. : 25 °C
Detection : UV-220 nm Detection : UV-220 nm

Particle Size Length (mm) Guard
Column I.D (mm)
(μm) 50 100 150 250 Column
2.1 APASHI-0013 APASHI-0016 APASHI-0019 - -
3 3.0 APASHI-0014 APASHI-0017 APASHI-0020 - -
ES-OVM 4.6 APASHI-0015 APASHI-0018 APASHI-0021 - -
2.0 - - APASHI-0001 -
5
4.6 - - APASHI-0002 - APASHI-0005
4.6 - - APASHI-0003 - (5um 10x4.0)
5
ES-OVM-C 6.0 - - APASHI-0004 -
10 4.6 - - APASHI-0006 -
APASHI-0008
ES-OVM-C 10 20.0 - - - APASHI-0007 (10um 15x8.0)
(prep)
APASHI-0023
ES-PEPSIN 5 4.6 - - APASHI-0022 -
(5um 10x4.0)
APASHI-0025
ES-BSA 5 4.6 - - APASHI-0024 -
(5um 10x4.0)
2.0 - - APASHI-0026 -
ES-CD 5 APASHI-0028
6.0 - - APASHI-0027 -
(5um 10×4.0)
ES-PhCD 5 2.0 - - APASHI-0033 - APASHI-0035
ES-PhCD-T 5 6.0 - - APASHI-0034 - (5um 10×4.0)

Guard Length (mm)
Holder
Cartridges Particle Size I.D (mm) (With Adaptor)
(μm)
(2 pcs) 5 10
2.0 APASHI-0009 - APASHI-0011
ES-OVM 5
4.6 - APASHI-0010 APASHI-0012
2.0 APASHI-0029 - APASHI-0031
ES-CD 5
4.6 - APASHI-0030 APASHI-0032
2.0 APASHI-0036 - APASHI-0038
ES-PhCD 5
4.6 - APASHI-0037 APASHI-0039

Pg A-112
