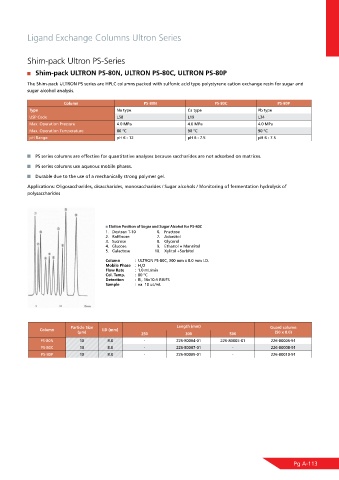

Page 117 - Shimadu Consumables Catalog

Ligand Exchange Columns Ultron Series

Shim-pack Ultron PS-Series

Shim-pack ULTRON PS-80N, ULTRON PS-80C, ULTRON PS-80P

The Shim-pack ULTRON PS series are HPLC columns packed with sulfonic acid type polystyrene cation exchange resin for sugar and
sugar alcohol analysis.

Column PS-80N PS-80C PS-80P
Type Na type Ca type Pb type
USP Code L58 L19 L34
Max. Operation Pressure 4.0 MPa 4.0 MPa 4.0 MPa
Max. Operation Temperature 80 °C 90 °C 90 °C
pH Range pH 6 - 12 pH 6 - 7.5 pH 6 - 7.5

PS series columns are effective for quantitative analyses because saccharides are not adsorbed on matrices.
PS series columns use aqueous mobile phases.
Durable due to the use of a mechanically strong polymer gel.
Applications: Oligosaccharides, disaccharides, monosaccharides / Sugar alcohols / Monitoring of fermentation hydrolysis of
polysaccharides

Elution Position of Sugar and Sugar Alcohol for PS-80C
1. Dextran T-10 6. Fructose
2. Raffinose 7. Adonitol
3. Sucrose 8. Glycerol
4. Glucose 9. Ethanol + Mannitol
5. Galactose 10. Xylitol +Sorbitol
Column : ULTRON PS-80C, 300 mm x 8.0 mm I.D.
Mobile Phase : H O
2
Flow Rate : 1.0 mL/min
Col. Temp. : 80 °C
Detection : RI, 16x10-5 RIUFS
Sample : ea. 10 uL/mL

Particle Size Length (mm) Guard column
Column I.D (mm)
(μm) 250 300 500 (50 x 8.0)
PS-80N 10 8.0 - 226-80004-01 226-80005-01 226-80006-91
PS-80C 10 8.0 - 226-80007-01 - 226-80008-91
PS-80P 10 8.0 - 226-80009-01 - 226-80010-91

Pg A-113
