Normal–phase Columns

Shim-pack Ultron VX Series

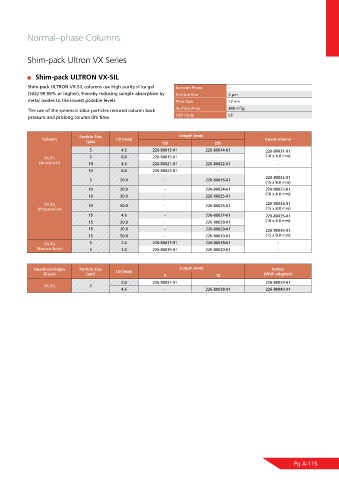

Shim-pack ULTRON VX-SIL
Shim-pack ULTRON VX-SIL columns use high purity silica gel Bonded Phase -
(SiO2 99.99% or higher), thereby reducing sample absorption by Particle Size 5 μm
metal oxides to the lowest possible levels. Pore Size 12 nm
2
The use of the spherical silica particles reduced column back Surface Area 300 m /g
pressure and prolong column life time. USP Code L3

Particle Size Length (mm)
Column I.D (mm) Guard column
(μm) 150 250
5 4.6 226-80013-01 226-80014-01 226-80031-01
VX-SIL 5 6.0 226-80015-01 - (10 x 4.0 mm)
(Analytical) 10 4.6 226-80021-01 226-80022-01 -
10 6.0 226-80023-01 - -
226-80032-01
5 20.0 - 226-80016-01
(15 x 8.0 mm)
10 20.0 - 226-80024-01 226-80033-01
(10 x 4.0 mm)
10 30.0 - 226-80025-01
VX-SIL 10 50.0 - 226-80026-01 226-80034-01
(Preparative) (15 x 8.0 mm)
15 4.6 - 226-80027-01 226-80035-01
15 20.0 - 226-80028-01 (10 x 4.0 mm)
15 30.0 - 226-80029-01 226-80036-01
15 50.0 - 226-80030-01 (15 x 8.0 mm)
VX-SIL 5 2.0 226-80017-01 226-80018-01 -
(Narrow Bore) 5 1.0 226-80019-01 226-80020-01 -

Guard cartridges Particle Size I.D (mm) Length (mm) Holder
(2 pcs) (μm) 5 10 (With adaptor)
2.0 226-80037-91 - 226-80039-91
VX-SIL 5
4.6 - 226-80038-91 226-80040-91

Pg A-115
