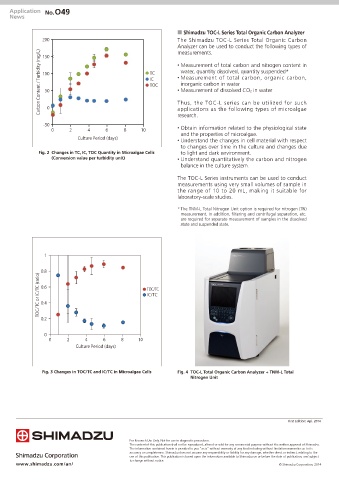

Page 13 - 4_TOC special applications

Application No.O49
News

n Shimadzu TOC-L Series Total Organic Carbon Analyzer
The Shimadzu TOC-L Series Total Organic Carbon
Analyzer can be used to conduct the following types of
$BSCPO $POUFOU 5VSCJEJUZ NH - 5$ • Measurement of total carbon and nitrogen content in
measurements.

water, quantity dissolved, quantity suspended*
• Measurement of total carbon, organic carbon,
*$
inorganic carbon in water
50$
• Measurement of dissolved CO2 in water

Thus, the TOC-L series can be utilized for such

research.
applications as the following types of microalgae
• Obtain information related to the physiological state
and the properties of microalgae.
$VMUVSF 1FSJPE EBZT • Understand the changes in cell material with respect
to changes over time in the culture and changes due
Fig. 2 Changes in TC, IC, TOC Quantity in Microalgae Cells to light and dark environment.
(Conversion value per turbidity unit) • Understand quantitatively the carbon and nitrogen
balance in the culture system.
The TOC-L Series instruments can be used to conduct
measurements using very small volumes of sample in
the range of 10 to 20 mL, making it suitable for
laboratory-scale studies.

* The TNM-L Total Nitrogen Unit option is required for nitrogen (TN)
measurement. In addition, filtering and centrifugal separation, etc.
are required for separate measurement of samples in the dissolved
state and suspended state.

50$ 5$ PS *$ 5$ SBUJP 50$ 5$

*$ 5$

$VMUVSF 1FSJPE EBZT

Fig. 3 Changes in TOC/TC and IC/TC in Microalgae Cells Fig. 4 TOC-L Total Organic Carbon Analyzer + TNM-L Total
Nitrogen Unit

First Edition: Apl. 2014

For Research Use Only. Not for use in diagnostic procedures.
The content of this publication shall not be reproduced, altered or sold for any commercial purpose without the written approval of Shimadzu.
The information contained herein is provided to you "as is" without warranty of any kind including without limitation warranties as to its
accuracy or completeness. Shimadzu does not assume any responsibility or liability for any damage, whether direct or indirect, relating to the
use of this publication. This publication is based upon the information available to Shimadzu on or before the date of publication, and subject
to change without notice.
www.shimadzu.com/an/ © Shimadzu Corporation, 2014
