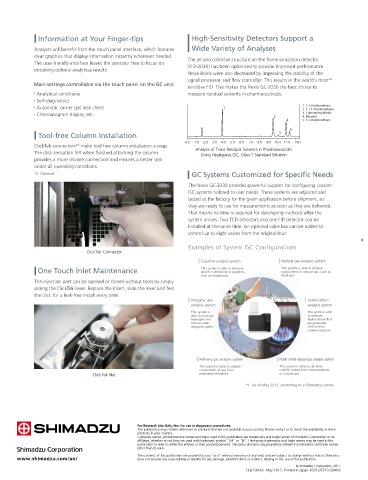

Page 57 - Pharmaceutical Solution for Pharma Analysis

Information at Your Finger-tips High-Sensitivity Detectors Support a

Analysts will benefit from the touch panel interface, which features Wide Variety of Analyses
clear graphics that display information instantly whenever needed. The jet and collector structure on the flame ionization detector
The user-friendly interface leaves the operator free to focus on (FID-2030) has been optimized to provide improved performance.
obtaining optimal analytical results.
Noise levels were also decreased by improving the stability of the
1
signal processor and flow controller. This results in the world's most*
Main settings controllable via the touch panel on the GC unit:
sensitive FID. This makes the Nexis GC-2030 the best choice to
• Analytical conditions measure residual solvents in pharmaceuticals.
• Self-diagnostics
• Automatic carrier gas leak check 1 1. 1,1-Dichloroethane
2. 1,1,1-Trichloroethane
• Chromatogram display, etc. 3. Carbontetrachloride
2 4. Benzene
4 5. 1,2-Dichloroethane
5
Tool-free Column Installation 3
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 min
ClickTek connectors* make tool free column installation a snap. Analysis of Trace Residual Solvents in Pharmaceuticals
2
The click sensation felt when finished attaching the column Using Headspace GC, Class 1 Standard Solution
provides a more reliable connection and ensures a better seal
under all operating conditions.
GC Systems Customized for Specific Needs
*2 Optional
The Nexis GC-2030 provides powerful support for configuring custom
GC systems tailored to user needs. These systems are adjusted and
tested at the factory for the given application before shipment, so
they are ready to use for measurements as soon as they are delivered.
That means no time is required for developing methods after the
system arrives. Two TCD detectors and one FID detector can be
installed at the same time. An optional valve box can be added to
control up to eight valves from the original four.
Examples of System GC Configurations
ClickTek Connector
Gasoline analysis system Natural gas analysis system
One Touch Inlet Maintenance This system is able to measure This system is able to analyze
components in natural gas, such as
specific substances in gasoline,
such as oxygenates. shale gas.
The injection port can be opened or closed without tools by simply
sliding the ClickTek lever. Replace the insert, slide the lever and feel
the click for a leak-free install every time.
Inorganic gas Hydrocarbon
analysis system analysis system
This system is This system is able
able to measure to measure
hydrogen and hydrocarbons that
various other are generated,
inorganic gases. such as from
catalyst reactions.

Refinery gas analysis system Public utility natural gas analysis system
This system is able to analyze This system is able to calculate
components in gas from calorific values from measurements
ClickTek Nut petroleum refineries. of natural gas.
*1 As of May 2017, according to a Shimadzu survey
