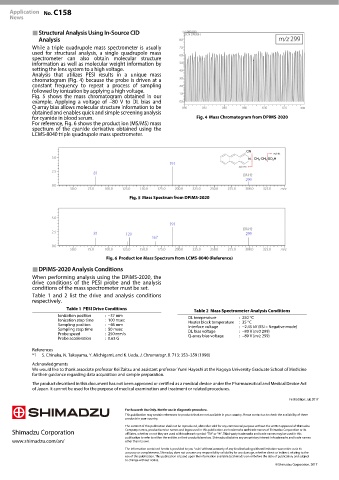

 Structural Analysis Using In-Source CID
Analysis
While a triple quadrupole mass spectrometer is usually
used for structural analysis, a single quadrupole mass
spectrometer can also obtain molecular structure
information as well as molecular weight information by
setting the lens system to a high voltage.
Analysis that utilizes PESI results in a unique mass
chromatogram (Fig. 4) because the probe is driven at a
constant frequency to repeat a process of sampling
followed by ionization by applying a high voltage.
Fig. 5 shows the mass chromatogram obtained in our
example. Applying a voltage of −80 V to DL bias and
Q-array bias allows molecular structure information to be
obtained and enables quick and simple screening analysis
for cyanide in blood serum. Mass Chromatogram from DPiMS-2020
For reference, Fig. 6 shows the product ion (MS/MS) mass
spectrum of the cyanide derivative obtained using the
LCMS-8040 triple quadrupole mass spectrometer.

Mass Spectrum from DPiMS-2020

Product Ion Mass Spectrum from LCMS-8040 (Reference)

 DPiMS-2020 Analysis Conditions
When performing analysis using the DPiMS-2020, the
drive conditions of the PESI probe and the analysis
conditions of the mass spectrometer must be set.

Table 1 and 2 list the drive and analysis conditions
respectively.
Table 1 PESI Drive Conditions
Table 2 Mass Spectrometer Analysis Conditions
Ionization position : −37 mm
Ionization stop time : 100 msec DL temperature : 250 °C
: 35 °C
Heater block temperature
Sampling position : −46 mm Interface voltage : −2.45 kV (ESI – Negative mode)
Sampling stop time : 50 msec
Probe speed : 250 mm/s DL bias voltage : : −80 V (m/z 299)
−80 V (m/z 299)
Q-array bias voltage
Probe acceleration : 0.63 G
