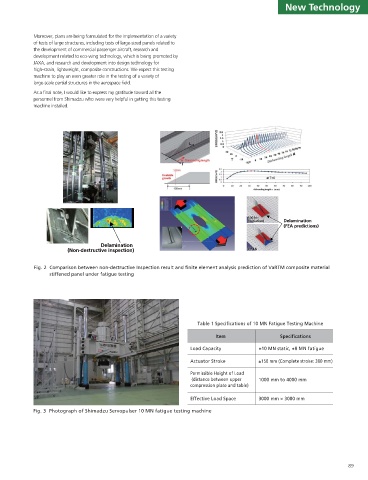

New Technology

Moreover, plans are being formulated for the implementation of a variety
of tests of large structures, including tests of large-sized panels related to
the development of commercial passenger aircraft, research and
development related to eco-wing technology, which is being promoted by
JAXA, and research and development into design technology for
high-strain, lightweight, composite constructions. We expect this testing
machine to play an even greater role in the testing of a variety of
large-scale partial structures in the aerospace field.
As a final note, I would like to express my gratitude toward all the
personnel from Shimadzu who were very helpful in getting this testing
machine installed.

6 600 kN
600 kN
0
0 kN
(I (Initiation)
(Initiation) ) Delamination
(FEA predictions)
Delamination
685 kN
6
(Non-destructive inspection) 685 kN
8
5
kN
Fig. 2 Comparison between non-destructive Inspection result and finite element analysis prediction of VaRTM composite material
stiffened panel under fatigue testing

Table 1 Specifications of 10 MN Fatigue Testing Machine

Item Specifications

Load Capacity ±10 MN static, ±8 MN fatigue
Actuator Stroke ±150 mm (Complete stroke: 300 mm)

Permissible Height of Load
(distance between upper 1000 mm to 4000 mm
compression plate and table)

Effective Load Space 3000 mm × 3000 mm
Fig. 3 Photograph of Shimadzu Servopulser 10 MN fatigue testing machine
