P. 17

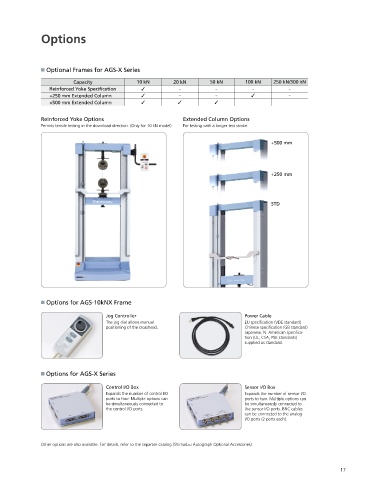

Options
Optional Frames for AGS-X Series
Capacity 10 kN 20 kN 50 kN 100 kN 250 kN/300 kN
Reinforced Yoke Specification
+250 mm Extended Column
+500 mm Extended Column
Reinforced Yoke Options Extended Column Options
Permits tensile testing in the download direction. (Only for 10 kN model) For testing with a longer test stroke.
+500 mm
+250 mm
STD
Options for AGS-10kNX Frame
Jog Controller Power Cable
The jog dial allows manual EU speci cation (VDE standard)
positioning of the crosshead. Chinese speci cation (GB standard)
Japanese, N. American speci ca-
tion (UL, CSA, PSE standards)
supplied as standard.
Options for AGS-X Series
Control I/O Box Sensor I/O Box
Expands the number of control I/O Expands the number of sensor I/O
ports to four. Multiple options can ports to two. Multiple options can
be simultaneously connected to be simultaneously connected to
the control I/O ports. the sensor I/O ports. BNC cables
can be connected to the analog
I/O ports (2 ports each).
Other options are also available. For details, refer to the separate catalog (Shimadzu Autograph Optional Accessories).
