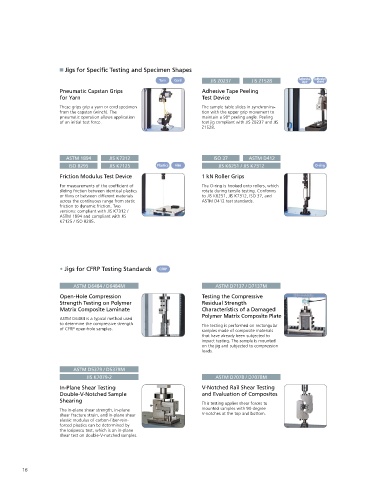

Page 16 - Shimadzu Autograph AGS-X Series
P. 16
Jigs for Specific Testing and Specimen Shapes
Yarn Cord JIS Z0237 JIS Z1528 Adhesive Adhesive
sheet
tape
Pneumatic Capstan Grips Adhesive Tape Peeling
for Yarn Test Device
These grips grip a yarn or cord specimen The sample table slides in synchroniza-
from the capstan (winch). The tion with the upper grip movement to
pneumatic operation allows application maintain a 90° peeling angle. Peeling
of an initial test force. test jig compliant with JIS Z0237 and JIS
Z1528.
ASTM 1894 JIS K7312 ISO 37 ASTM D412
ISO 8295 JIS K7125 Plastics Film JIS K6251 / JIS K7312 O-ring
Friction Modulus Test Device 1 kN Roller Grips
For measurements of the coef cient of The O-ring is hooked onto rollers, which
sliding friction between identical plastics rotate during tensile testing. Conforms
or lms or between different materials to JIS K6251, JIS K7312, ISO 37, and
across the continuous range from static ASTM D412 test standards.
friction to dynamic friction. Two
versions: compliant with JIS K7312 /
ASTM 1894 and compliant with JIS
K7125 / ISO 8295.
• Jigs for CFRP Testing Standards CFRP
ASTM D6484 / D6484M ASTM D7137 / D7137M
Open-Hole Compression Testing the Compressive
Strength Testing on Polymer Residual Strength
Matrix Composite Laminate Characteristics of a Damaged
Polymer Matrix Composite Plate
ASTM D6484 is a typical method used
to determine the compressive strength The testing is performed on rectangular
of CFRP open-hole samples. samples made of composite materials
that have already been subjected to
impact testing. The sample is mounted
on the jig and subjected to compression
loads.
ASTM D5379 / D5379M
JIS K7079-2 ASTM D7078 / D7078M
In-Plane Shear Testing V-Notched Rail Shear Testing
Double-V-Notched Sample and Evaluation of Composites
Shearing This testing applies shear forces to
The in-plane shear strength, in-plane mounted samples with 90-degree
shear fracture strain, and in-plane shear V-notches at the top and bottom.
elastic modulus of carbon- ber-rein-
forced plastics can be determined by
the Iosipescu test, which is an in-plane
shear test on double-V-notched samples.
16
