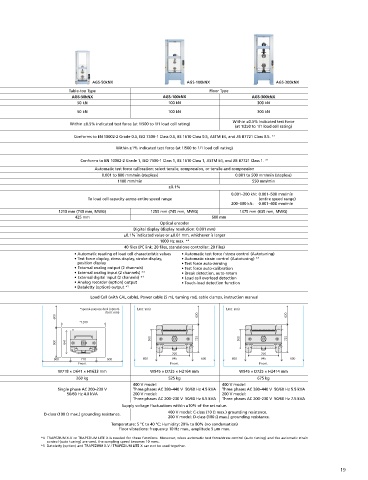

Page 19 - Shimadzu Autograph AGS-X Series

AGS-50kNX AGS-100kNX AGS-300kNX
Table-top Type Floor Type
AGS-50kNX AGS-100kNX AGS-300kNX
50 kN 100 kN 300 kN
50 kN 100 kN 300 kN
Within ±0.5% indicated test force
Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating)
(at 1/250 to 1/1 load cell rating)
Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5. * 1
Within ±1% indicated test force (at 1/500 to 1/1 load cell rating)

Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1. * 1
Automatic test force calibration: select tensile, compression, or tensile and compression
0.001 to 800 mm/min (stepless) 0.001 to 500 mm/min (stepless)
1100 mm/min 550 mm/min
±0.1%
0.001–200 kN: 0.001–500 mm/min
To load cell capacity across entire speed range (entire speed range)
200–300 kN: 0.001–400 mm/min
1210 mm (745 mm, MWG) 1255 mm (745 mm, MWG) 1475 mm (635 mm, MWG)
425 mm 600 mm
Optical encoder
Digital display (display resolution: 0.001 mm)
±0.1% indicated value or ±0.01 mm, whichever is larger
1000 Hz max. * 4
40 files (PC link: 20 files, standalone controller: 20 files)
• Automatic reading of load cell characteristic values • Automatic test force / stress control (Autotuning)
• Test force display, stress display, stroke display, • Automatic strain control (Autotuning) * 4
position display • Test force auto-zeroing
• External analog output (2 channels) • Test force auto-calibration
• External analog input (2 channels) * 4 • Break detection, auto-return
• External digital input (2 channels) * 4 • Load cell overload detection
• Analog recorder (option) output • Touch-load detection function
• Dataletty (option) output * 5
Load Cell (with CAL cable), Power cable (5 m), turning rod, cable clamps, instruction manual

*Special-purpose desk (option) (Unit: mm) (Unit: mm)
(Unit: mm)
600 600 600
*1200

500 725 500 725
800 641
795 795
600 718 600 600 945 600 600 945 600
Front Front Front
W718 × D641 × H1633 mm W945 × D725 × H2164 mm W945 × D725 × H2414 mm
260 kg 525 kg 675 kg
400 V model: 400 V model:
Single phase AC 200–230 V Three phases AC 380–440 V 50/60 Hz 4.5 kVA Three phases AC 380–440 V 50/60 Hz 5.5 kVA
50/60 Hz 4.0 kVA 200 V model: 200 V model:
Three phases AC 200–230 V 50/60 Hz 6.5 kVA Three phases AC 200–230 V 50/60 Hz 7.5 kVA
Supply voltage fluctuations within ±10% of the set value.
D-class (100 max.) grounding resistance. 400 V model: C-class (10 max.) grounding resistance.
200 V model: D-class (100 max.) grounding resistance.
Temperature: 5 °C to 40 °C; Humidity: 20% to 80% (no condensation)
Floor vibrations: frequency 10 Hz max., amplitude 5 m max.
*4 TRAPEZIUM X-V or TRAPEZIUM LITE X is needed for these functions. Moreover, when automatic test force/stress control (auto tuning) and the automatic strain
control (auto tuning) are used, the sampling speed becomes 10 msec.
*5 Dataletty (option) and TRAPEZIUM X-V / TRAPEZIUM LITE X can not be used together.

19
