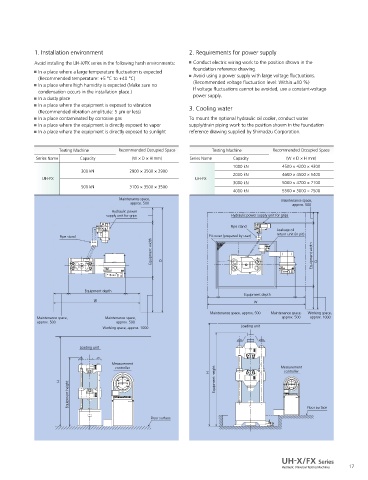

Page 17 - Shimadzu UH-X-FX Series

1. Installation environment 2. Requirements for power supply
Avoid installing the UH-X/FX series in the following harsh environments: Conduct electric wiring work to the position shown in the
foundation reference drawing.
In a place where a large temperature fluctuation is expected
(Recommended temperature: +5 °C to +40 °C) Avoid using a power supply with large voltage fluctuations.
In a place where high humidity is expected (Make sure no (Recommended voltage fluctuation level: Within ±10 %)
condensation occurs in the installation place.) If voltage fluctuations cannot be avoided, use a constant-voltage
In a dusty place power supply.
In a place where the equipment is exposed to vibration 3. Cooling water
(Recommended vibration amplitude: 5 µm or less)
In a place contaminated by corrosive gas To mount the optional hydraulic oil cooler, conduct water
In a place where the equipment is directly exposed to vapor supply/drain piping work to the position shown in the foundation
In a place where the equipment is directly exposed to sunlight reference drawing supplied by Shimadzu Corporation.

Testing Machine Recommended Occupied Space Testing Machine Recommended Occupied Space
Series Name Capacity (W × D × H mm) Series Name Capacity (W × D × H mm)
1000 kN 4500 × 4200 × 4300
300 kN 2900 × 3500 × 2900
2000 kN 4600 × 4500 × 5400
UH-FX UH-FX
3000 kN 5000 × 4700 × 7100
500 kN 3100 × 3500 × 3500
4000 kN 5500 × 5000 × 7500
Maintenance space, Maintenance space,
approx. 500 approx. 500
Hydraulic power
supply unit for grips Hydraulic power supply unit for grips
Pipe stand
Leakage oil
Pipe stand Pit cover (prepared by user) return unit (in pit)
Equipment width Equipment width

D
NK D
NK

Equipment depth
Equipment depth
̬ W
Maintenance space, approx. 500 Maintenance space, Working space,
Maintenance space, Maintenance space, approx. 500 approx. 1000
approx. 500 approx. 500
Working space, approx. 1000 Loading unit

Loading unit

Measurement
controller Measurement
H controller
H Equipment height
Equipment height

Floor surface Floor surface

UH-X/FX Series
Hydraulic Universal Testing Machines 17
