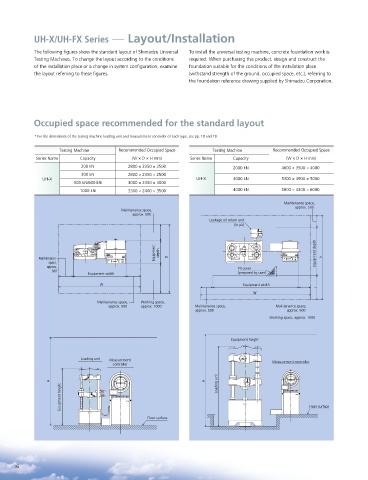

UH-X/UH-FX Series — Layout/Installation

The following figures show the standard layout of Shimadzu Universal To install the universal testing machine, concrete foundation work is
Testing Machines. To change the layout according to the conditions required. When purchasing this product, design and construct the
of the installation place or a change in system configuration, examine foundation suitable for the conditions of the installation place
the layout referring to these figures. (withstand strength of the ground, occupied space, etc.), referring to
the foundation reference drawing supplied by Shimadzu Corporation.

Occupied space recommended for the standard layout

* For the dimensions of the testing machine loading unit and measurement controller of each type, see pp. 18 and 19.
Testing Machine Recommended Occupied Space Testing Machine Recommended Occupied Space
Series Name Capacity (W × D × H mm) Series Name Capacity (W × D × H mm)
200 kN 2800 × 2350 × 2500 2000 kN 4600 × 3500 × 4000
300 kN 2800 × 2350 × 2500
UH-X UH-X 3000 kN 5300 × 3900 × 5000
500 kN/600 kN 3000 × 2350 × 3000
1000 kN 3300 × 2400 × 3500 4000 kN 5800 × 4300 × 6000

Maintenance space,
approx. 500
Maintenance space,
approx. 500
Leakage oil return unit
(in pit)

Equipment depth Equipment depth

Maintenance NK D NK D
space,
approx. Pit cover
500
Equipment width (prepared by user)
W Equipment width
̬
Maintenance space, Working space,
approx. 500 approx. 1000 Maintenance space, Maintenance space,
approx. 500 approx. 500
Working space, approx. 1000

Equipment height

Loading unit Measurement
controller Measurement controller

H H Loading unit
Equipment height Floor surface

Floor surface
