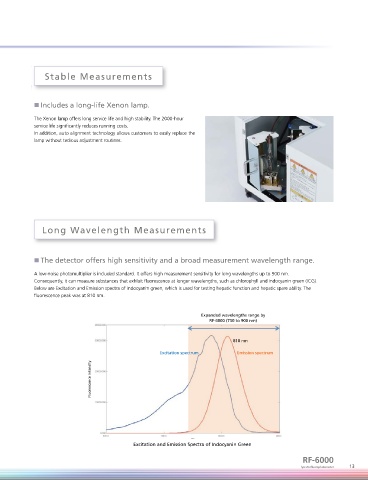

Page 13 - Shimadzu RF-6000

Stable Measurements

■ Includes a long-life Xenon lamp.

The Xenon lamp offers long service life and high stability. The 2000-hour
service life significantly reduces running costs.
In addition, auto alignment technology allows customers to easily replace the
lamp without tedious adjustment routines.

Long Wavelength Measurements

■ The detector offers high sensitivity and a broad measurement wavelength range.

A low-noise photomultiplier is included standard. It offers high measurement sensitivity for long wavelengths up to 900 nm.
Consequently, it can measure substances that exhibit fluorescence at longer wavelengths, such as chlorophyll and indocyanin green (ICG).
Below are Excitation and Emission spectra of indocyanin green, which is used for testing hepatic function and hepatic spare ability. The
fluorescence peak was at 810 nm.

Expanded wavelengths range by
RF-6000 (750 to 900 nm)

810 nm
Excitation spectrum Emission spectrum
Fluorescence Intensity

Excitation and Emission Spectra of Indocyanin Green

RF-6000
Spectrofluorophotometer 13
