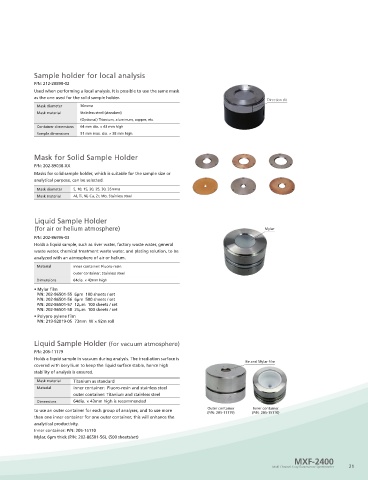

MP-35H Briquet Press Sample holder for local analysis
P/N: 212-20890-02
Operation Automatic
Used when performing a local analysis. It is possible to use the same mask
Press Hydraulic
as the one used for the solid sample holder.
Maximum pressure 350 kN Direction slit
Pressure setting Arbitrary with a valve Mask diameter 30mmø
Method Place the sample in the cup or the ring and press it. Mask material Stainless steel (standard)
Press head Plane type (Optional) Titanium, aluminum, copper, etc.
Power requirements 3ø 200V ±10%, 50/60 Hz, 3 A Container dimensions 64 mm dia. × 43 mm high
Dimensions W500 × D500 × H1,210 mm Sample dimensions 51 mm max. dia. × 38 mm high
weight 240kg

Mask for Solid Sample Holder
Flat press head
Briquets samples using a cup or a ring.
P/N: 202-89038-XX
Masks for solid sample holder, which is suitable for the sample size or
Sample Polishing Machine analytical purpose, can be selected.
(with dust collector) Mask diameter 5, 10, 15, 20, 25, 30, 35mmø
Mask material Al, Ti, Ni, Cu, Zr, Mo, Stainless steel
Power requirements 3ø ±200V ±10%, 4A
Dimensions W560 × D750 × H995 mm
weight 165kg
Endless polishing belt 915mm long and 100mm vide Liquid Sample Holder
(No.136) The following endless polishing belt set (10 pcs./set) is (for air or helium atmosphere) Mylar
additionally required P/N: 202-86996-03
• Zirconia No. 80 (Not applicable to determination of Al and Zr.)
Holds a liquid sample, such as river water, factory waste water, general
waste water, chemical treatment waste water, and plating solution, to be
analyzed with an atmosphere of air or helium.
Material inner container: Fluoro-resin
Briquetting Cup (No. 9) outer container: Stainless steel
Used for briquetting power samples. Dimensions 64dia. × 43mm high
Materials: Steel, Aluminum • Mylar film
Dimensions: 39.7dia. × 11.3mm high P/N: 202-86501-55 6µm 100 sheets / set
Cup Sample produced P/N: 202-86501-56 6µm 500 sheets / set
P/N: 202-86501-57 12µm 100 sheets / set
P/N: 202-86501-58 25µm 100 sheets / set
Briquetting Ring • Polypro pylene film
P/N: 219-82019-05 73mm W × 92m roll
Materials: Aluminum, Vinyl chloride resin
The vinyl chloride resin rings are used for silicate samples, while the
aluminum rings are used for other types of samples, such as cement. Liquid Sample Holder (for vacuum atmosphere)
Dimensions: 35dia. × 5mm thick P/N: 205-11179
Holds a liquid sample in vacuum during analysis. The irradiation surface is Be and Mylar film
covered with beryllium to keep the liquid surface stable, hence high
stability of analysis is ensured.
Solid Sample Holder
Mask Mask material Titanium as standard
P/N: 212-20890-01
Material inner container: Fluoro-resin and stainless steel
Mask diameter 30mmø outer container: Titanium and stainless steel
Mask material Stainless steel as standard;titanium Dimensions 64dia. × 43mm high is recommended
and aluminum as optional. Outer container Inner container
to use an outer container for each group of analyses, and to use more (P/N: 205-11179) (P/N: 205-15110)
Dimensions 64dia. × 38mm high
than one inner container for one outer container; this will enhance the
Maximum sample size 51mm in diameter and 38mm in height. analytical productivity.
Inner container: P/N: 205-15110
Mylar, 6µm thick (P/N: 202-86501-56), (500 sheets/set)

MXF-2400
20 Multi-Channel X-ray Fluorescence Spectrometer 21
