Page 23 - Shimadzu MXF-2400

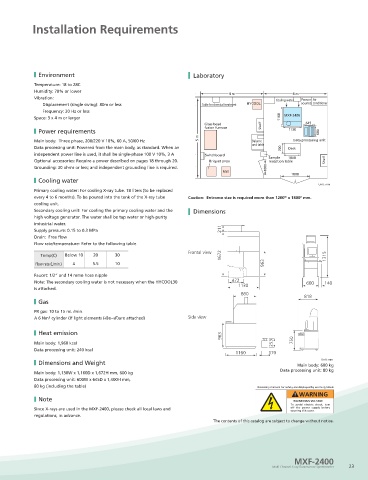

Installation Requirements

Spotting Filter Paper, Ion Exchange Filter Environment Laboratory
Paper, and Holder Temperature: 18 to 28C
Humidity: 70% or lower
4 m 4 m
Drop a liquid sample on the filter paper, dry, and analyze. Vibration: Power Air
Filter paper Cooling water source conditioner
Filter paper: P/N: 210-16043-50; 50 sheets/set (P/N: 210-16043-50) Displacement (single swing): 80m or less Table for chemical treatment HYCOOL
Frequency: 30 Hz or less
Drop a liquid sample on the ion exchange filter paper, MXF-2400
Space: 3 x 4 m or larger 1160
condense, adjust its pH, and analyze. The ion exchange filter Glass bead 645
fusion furnace Shelf
paper is available in three types. Power requirements 1130 600
Holder
Note: A filter paper holder (P/N: 205-15030) and (P/N: 205-15030) Main body: Three phase, 200/220 V 10%, 60 A, 50/60 Hz 5 m Balance Data processing unit
a solid sample holder are necessary. Ion exchange filter paper Data processing unit: Powered from the main body, as standard. When an and table 700 Desk
(P/N: 210-16167-1~3) independent power line is used, it shall be single-phase 100 V 10%, 3 A Switchboard
Optional accessories: Require a power described on pages 18 through 20. Briquet press Sample 1000 Shelf
reception table
Grounding: 30 ohms or less; and independent grounding line is required. 1000
Cooling Water Circulation Device Mill 1800
P/N S239-15049-02 Cooling water Unit: mm
This is an external air-cooled water supply device used to supply cooled Primary cooling water: For cooling X-ray tube. 18 liters (to be replaced
W
H
water to the X-ray tube when a suitable tap water supply is not available. every 4 to 6 months). To be poured into the tank of the X-ray tube Caution: Entrance size is required more than 1200 x 1800 mm.
cooling unit.
Cooling capacity 5.3 kW (50/60 Hz) Secondary cooling unit: For cooling the primary cooling water and the Dimensions
(Ambient temperature: 32 °C, cooling water temperature setting: 20 °C) high voltage generator. The water shall be tap water or high-purity
Cooling system Forced air cooling, refrigerating system industrial water.
Power requirements 3-phase 200 V ±10 % (50/60 Hz, 7.6/8.1 A) Supply pressure: 0.15 to 0.3 MPa 211
Dimensions W400 × D850 × H966 mm Drain: Free flow
Flow rate/temperature: Refer to the following table
Weight 100 kg (water tank empty, with casters)
Frontal view
Note: Install it at a reasonable distance from the main unit as Temp(C) Below 10 20 30 1672 1315
considerable calorific power (about 4.5 kW) is generated. RKE1500B-V-G2-SP Flow rate (L/min.) 4 5.5 10 963
• Use at an ambient temperature of 32 °C or less.
Faucet: 1/2” and 14 mmø hose nipple
Note: The secondary cooling water is not necessary when the HYCOOL30 472 1130 600 140
is attached.
860
818
Gas
PR gas: 10 to 15 mL /min.
A 6 Nm 3 cylinder (If light elements (4Be~9F)are attached) Side view

Heat emission
963
Main body: 1,960 kcal 253 750
Data processing unit: 240 kcal
1160 170
Unit: mm
Dimensions and Weight Main body: 600 kg
Data processing unit: 80 kg
Main body: 1,130W x 1,160D x 1,672H mm, 600 kg
Data processing unit: 600W x 645D x 1,400H mm,
80 kg (including the table) Necessary matters for safety are displayed by warning labels.
WARNING
Note HAZARDOUS VOLTAGE
To avoid electric shock. tum
Since X-rays are used in the MXF-2400, please check all local laws and off the power supply before
opening this cover.
regulations, in advance.
The contents of this catalog are subject to change without notice.

MXF-2400
22 Multi-Channel X-ray Fluorescence Spectrometer 23
