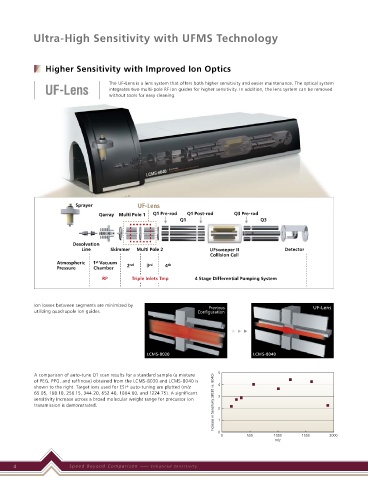

Ultra-High Sensitivity with UFMS Technology

Higher Sensitivity with Improved Ion Optics

The UF-Lens is a lens system that offers both higher sensitivity and easier maintenance. The optical system
UF-Lens integrates two multi-pole RF ion guides for higher sensitivity. In addition, the lens system can be removed
without tools for easy cleaning.

Sprayer UF-Lens
Qarray Multi Pole 1 Q1 Pre-rod Q1 Post-rod Q3 Pre-rod
Q1 Q3

Desolvation
Line Skimmer Multi Pole 2 UFsweeper II Detector
Collision Cell
st
Atmospheric 1 Vacuum rd th
Pressure Chamber 2 nd 3 4
RP Triple Inlets Tmp 4 Stage Differential Pumping System

Ion losses between segments are minimized by
Previous UF-Lens
utilizing quadrupole ion guides. Configuration

LCMS-8030 LCMS-8040

5
A comparison of auto-tune Q1 scan results for a standard sample (a mixture
Increase in Sensitivity (8030 vs. 8040)
of PEG, PPG, and raffinose) obtained from the LCMS-8030 and LCMS-8040 is
shown to the right. Target ions used for ESI + auto-tuning are plotted (m/z 4
65.05, 168.10, 256.15, 344.20, 652.40, 1004.60, and 1224.75). A significant
sensitivity increase across a broad molecular weight range for precursor ion 3
transmission is demonstrated. 2

0 1
0 500 1000 1500 2000
m/z
