Sample Injection System

ICPS-8100 Accessories

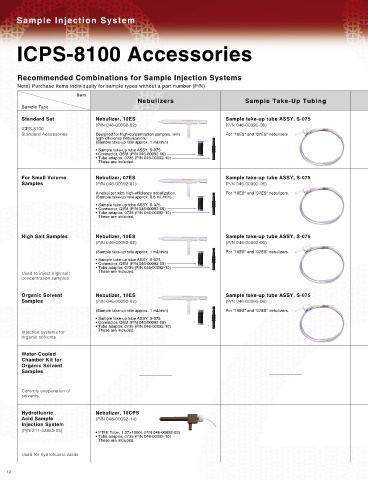

Recommended Combinations for Sample Injection Systems
Note) Purchase items individually for sample types without a part number (P/N)
Item
Nebulizers Sample Take-Up Tubing Chambers Torches Drains Other
Sample Type
Standard Set Nebulizer, 10ES Sample take-up tube ASSY, S-075 Cyclone chamber, HE Torch Drain trap,8214 Ball joint clip
(P/N 046-00092-02) (P/N 046-00092-06) (P/N 046-00093-02) (P/N 204-70272) (P/N 046-00093-01) (P/N 210-15508-01)
ICPS-8100
Standard Accessories Designed for high-concentration samples, with For "10ES" and "07ES" nebulizers. Connects the cyclone chamber and
high-efficiency nebulization. Drain trap for cyclone chamber torch.
(Sample take-up rate approx. 1 mL/min) (Indicated by "•")
• Locking screw, 0152
• Sample take-up tube ASSY, S-075 (P/N 046-00093-92)
• Connector, QSM (P/N 046-00092-09) • Seal, 0237
• Tube adaptor, 0735 (P/N 046-00092-10) (P/N 046-00093-93) Clip
These are included. These are included.
Torch (P/N 046-00993-01)
Fixes the drain trap to the cyclone
For Small Volume Nebulizer, 07ES Sample take-up tube ASSY, S-075 Cyclone chamber, HE Torch chamber.
Samples (P/N 046-00092-01) (P/N 046-00092-06) (P/N 046-00093-02) (P/N 204-70272)
Ball joint clip
A nebulizer with high-efficiency nebulization. For "10ES" and "07ES" nebulizers.
(Sample take-up rate approx. 0.6 mL/min) Nebulizer Drain tube
Cyclone "07ES" and"10ES" (P/N 200-30864-24)
• Sample take-up tube ASSY, S-075 • Locking screw, 0152 chamber
• Connector, QSM (P/N 046-00092-09) (P/N 046-00093-92)
• Tube adaptor, 0735 (P/N 046-00092-10) • Seal, 0237 This is the tube from the drain trap to
These are included. (P/N 046-00093-93) • Drain trap the drain.
These are included.
Clip
High Salt Samples Nebulizer, 10ES Sample take-up tube ASSY, S-075 Cyclone chamber, HE Torch for high- Water bubbler
(P/N 046-00092-02) (P/N 046-00092-06) (P/N 046-00093-02) concentration salt (P/N 204-19281)
solution samples
(Sample take-up rate approx. 1 mL/min) For "10ES" and "07ES" nebulizers. Used to prevent blockages
(P/N 204-74323) in the nebulizer when
• Sample take-up tube ASSY, S-075 analyzing samples
• Connector, QSM (P/N 046-00092-09) • Locking screw, 0152 Used when introducing Drain tube containing large amounts
• Tube adaptor, 0735 (P/N 046-00092-10) (P/N 046-00093-92) an undiluted solution of of sodium. Inserted in the
Used to inject high salt These are included. • Seal, 0237 a sample where the base carrier gas pathway.
(P/N 046-00093-93)
concentration samples These are included. element is of the % order (Cyclone chamber assembly)
of concentration.
Organic Solvent Nebulizer, 10ES Sample take-up tube ASSY, S-075 Chamber drain straight Organic solvent Drain kit Nebulizer holder kit type 2
Samples (P/N 046-00092-02) (P/N 046-00092-06) (P/N 211-80437-01) torch (P/N 211-86140-91) (P/N 211-48062)
(P/N 204-77296)
(Sample take-up rate approx. 1 mL/min) For "10ES" and "07ES" nebulizers. Includes organic
solvent resistant
• Sample take-up tube ASSY, S-075 Used when analyzing O-rings. They are
• Connector, QSM (P/N 046-00092-09) organic solvent attached to each
• Tube adaptor, 0735 (P/N 046-00092-10) samples that are chamber other than
Injection systems for These are included. difficult to inject into the cyclone chamber,
the plasma.
organic solvents and are used to support
nebulizers.
Water-Cooled Water-cooled chamber kit Drain kit NCB-1200 (SP)
Chamber Kit for (P/N 211-43472) (P/N 211-86140-91) (P/N 044-01910-01)
Organic Solvent
Samples This increases injection efficiency of
organic solvent samples by
cooling the chamber and
suppressing sample
evaporation within the
Controls evaporation of chamber.
solvents *Cooling water circulator is
necessary.
Hydrofluoric Nebulizer, 10CPS Chamber ASSY Demountable Drain kit
Acid Sample (P/N 046-00092-14) (P/N 205-07778-02) torch (P/N 211-86140-91)
Injection System (P/N 205-09627-01)
(P/N 211-42853-03) • PTFE Tube, 1.27×1500L (P/N 046-00092-03) (Included in the
hydrofluoric acid
• Tube adaptor, 0735 (P/N 046-00092-10) sample injection
These are included. system)
Used for hydrofluoric acids
