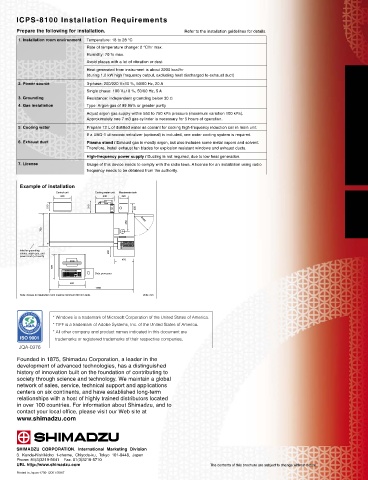

ICPS-8100 Installation Requirements C113-E014

Prepare the following for installation. Refer to the installation guidelines for details.
1. Installation room environment Temperature: 18 to 28 °C
Rate of temperature change: 2 °C/hr max.
Humidity: 70 % max.
Avoid places with a lot of vibration or dust.
Heat generated from instrument is about 2200 kcal/hr
(during 1.2 kW high frequency output, excluding heat discharged to exhaust duct)
2. Power source 3-phase: 200/220 V±10 %, 50/60 Hz, 20 A ICPS-8100
Single phase: 100 V±10 %, 50/60 Hz, 5 A
3. Grounding Resistance: independent grounding below 30
4. Gas installation Type: Argon gas of 99.95% or greater purity
Adjust argon gas supply within 550 to 750 kPa pressure (maximum variation 100 kPa).
Approximately one 7 m3 gas cylinder is necessary for 5 hours of operation.
5. Cooling water Prepare 12 L of distilled water as coolant for cooling high-frequency induction coil in main unit.
If a UAG-1 ultrasonic nebulizer (optional) is included, one water cooling system is required.
6. Exhaust duct Plasma stand / Exhaust gas is mostly argon, but also includes some metal vapors and solvent.
Therefore, install exhaust fan blades for explosion resistant windows and exhaust ducts.
High-frequency power supply / Ducting is not required, due to low heat generation.
7. License Usage of this device needs to comply with the radio laws. A license for an installation using radio
frequency needs to be obtained from the authority.

Example of installation
Control unit Cooling water unit Wastewater tank
420 430 220
Shimadzu
210 310 220
Sequential Plasma Spectrometer
430 R460
780

Inlet for grounding
cables, argon gas, and 260
power cord (5 m each)
470
597
Data processor
600
1990
Note: Access to installation room must be minimum 850 mm wide. Units: mm
