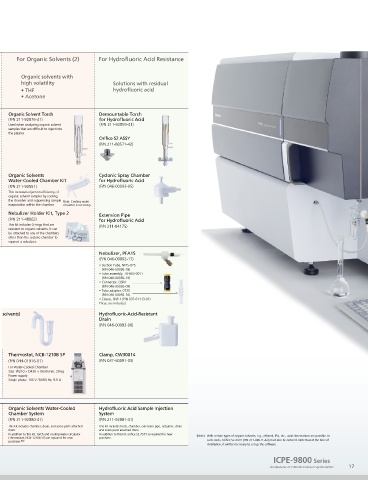

Page 17 - Shimadzu ICPE-9800 Series

(Standard Set) For High-Salt Samples For Organic Solvents (1) For Organic Solvents (2) For Hydrofluoric Acid Resistance

Organic solvents with
high volatility Solutions with residual
• THF hydrofluoric acid
• Acetone

Organic Solvent Torch Demountable Torch
(P/N 211-92876-41) for Hydrofluoric Acid
Used when analyzing organic solvent (P/N 211-92893-41)
samples that are difficult to inject into
the plasma.
Orifice S2 ASSY
(P/N 211-88571-42)

Organic Solvents Cyclonic Spray Chamber
Water-Cooled Chamber Kit for Hydrofluoric Acid
(P/N 211-90551) (P/N 046-00093-05)
This increases injection efficiency of
organic solvent samples by cooling
the chamber and suppressing sample Note: Cooling water
evaporation within the chamber. circulator is necessary.
Nebulizer Holder Kit, Type 2 Extension Pipe
(P/N 211-48062) for Hydrofluoric Acid
This kit includes O-rings that are (P/N 211-84175)
resistant to organic solvents. It can
be attached to any of the chambers
other than the cyclone chamber to
support a nebulizer.
Nebulizer, PFA1S
(P/N 046-00092-17)
• Suction Tube, NFTS-075
(P/N 046-00092-18)
• Tube assembly, 70-803-0911
(P/N 046-00092-19)
• Connector, QSM
(P/N 046-00092-09)
• Tube adaptor, 0735
(P/N 046-00092-10)
• Clamp, SNP-1 (P/N 037-61113-01)
These are included.
Drain Trap (for organic solvents) Hydrofluoric-Acid-Resistant
Drain
(P/N 046-00093-06)

Thermostat, NCB-1210B SP Clamp, CW30014
(P/N 044-01916-01) (P/N 037-60091-03)
For Water-Cooled Chamber
Size: W210 × D430 × H639 mm, 29 kg
Power supply:
Single-phase, 100 V, 50/60 Hz, 9.5 A

Organic Solvents Water-Cooled Hydrofluoric Acid Sample Injection
Chamber System System
(P/N 211-92880-41) (P/N 211-92881-41)
This kit includes chamber, drain, and some parts attached This kit includes torch, chamber, extension pipe, nebulizer, drain
them. and some parts attached them.
In addition to this kit, torch and cooling water circulator In addition to this kit, orifice S2 ASSY is required for new (Note) With certain types of organic solvents, e.g., ethanol, IPA, etc., axial observations are possible. In
(Thermostat, NCB-1210B SP) are repuired for new purchase.
purchase. Note such cases, Orifice S2 ASSY (P/N 211-88571-42) must also be ordered. Note that at the time of
installation, it will be necessary to set up the software.
ICPE-9800 Series
Simultaneous ICP Atomic Emission Spectrometers 17
