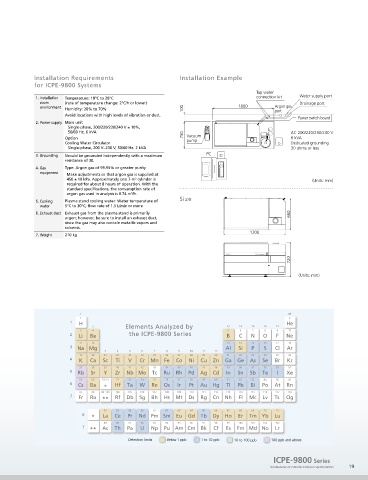

Page 19 - Shimadzu ICPE-9800 Series

Installation Requirements Installation Example
for ICPE-9800 Systems
Tap water
1. Installation Temperature: 18°C to 28°C connection kit Water supply port
room (rate of temperature change: 2°C/h or lower) Drainage port
environment Humidity: 20% to 70% 100 1800 Argon gas
port
Avoid locations with high levels of vibration or dust.
Power switch board
2. Power supply Main unit
Single-phase, 200/220/230/240 V ± 10%,
50/60 Hz, 6 kVA 750 AC 200/220/230/240 V
Option Vacuum 6 kVA
pump
Cooling Water Circulator Dedicated grounding
Single-phase, 200 V–230 V, 50/60 Hz, 2 kVA 30 ohms or less
3. Grounding Should be grounded independently with a maximum PC
resistance of 30.
4. Gas Type: Argon gas of 99.95% or greater purity
equipment Make adjustments so that argon gas is supplied at
450 ± 10 kPa. Approximately one 7-m cylinder is (Units: mm)
3
required for about 8 hours of operation. With the
standard specifications, the consumption rate of
argon gas used in analysis is 0.74 m /h.
3
5. Cooling Plasma stand cooling water: Water temperature of Size
water 5°C to 30°C; flow rate of 1.5 L/min or more
6. Exhaust duct Exhaust gas from the plasma stand is primarily 660
argon; however, be sure to install an exhaust duct,
since the gas may also contain metallic vapors and
solvents.
1300
7. Weight 210 kg

720

(Units: mm)

1 18
1 2
1 H He
Elements Analyzed by
2 E lements Anal y zed b y 13 14 15 16 17
3 4 5 6 7 8 9 10
the ICPE-9800 Serie
2 Li Be the ICPE-9800 Series s B C N O F Ne
11 12 13 14 15 16 17 18
3 Na Mg Al Si P S Cl Ar
3 4 5 6 7 8 9 10 11 12
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
4 K Ca Sc Ti V Cr Mn Fe Co Ni Cu Zn Ga Ge As Se Br Kr
37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54
5 Rb Sr Y Zr NbMo Tc Ru Rh Pd Ag Cd In Sn Sb Te I Xe
55 56 57–71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86
6 Cs Ba * Hf Ta W Re Os Ir Pt Au Hg Tl Pb Bi Po At Rn
87 88 89–103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118
7 Fr Ra ** Rf Db Sg Bh Hs Mt Ds Rg Cn Nh Fl Mc Lv Ts Og
57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
6 * La Ce Pr Nd Pm Sm Eu Gd Tb Dy Ho Er Tm Yb Lu
89 90 91 92 93 94 95 96 97 98 99 100 101 102 103
7
** Ac Th Pa U Np PuAmCm Bk Cf Es FmMdNo Lr
Detection limits Below 1 ppb 1 to 10 ppb 10 to 100 ppb 100 ppb and above

ICPE-9800 Series
Simultaneous ICP Atomic Emission Spectrometers 19
