Page 13 - Shimadzu EDX-8100

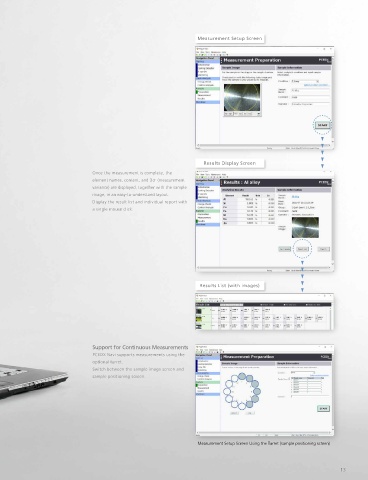

PCEDX Navi Software Allows Easy Operation from the Start Measurement Setup Screen

PCEDX Navi software is designed to simplify X-ray fluorescence spectrometry for beginners, while providing the feature set and
capabilities demanded by more experienced users.
The straightforward user interface offers intuitive operation and provides a convenient operating environment for beginners and
experts alike.

Simple Screen Layout

Sample image display, analysis conditions selection, and sample name input on the same screen.

Collimator Switching from the Measurement Screen
Change the collimator diameter while observing the sample image.
The selected diameter is indicated by a yellow circle.

Results Display Screen
Automatic Storage of Sample Images
Once the measurement is complete, the
The sample image is loaded automatically when the measurement starts. Sample images element names, content, and 3М (measurement
are saved with a link to the data file. variance) are displayed, together with the sample
image, in an easy-to-understand layout.
Display the result list and individual report with
a single mouse click.

Results List (with images)

Support for Continuous Measurements
PCEDX Navi supports measurements using the
optional turret.
Switch between the sample image screen and
sample positioning screen.

Measurement Setup Screen Using the Turret (sample positioning screen)
