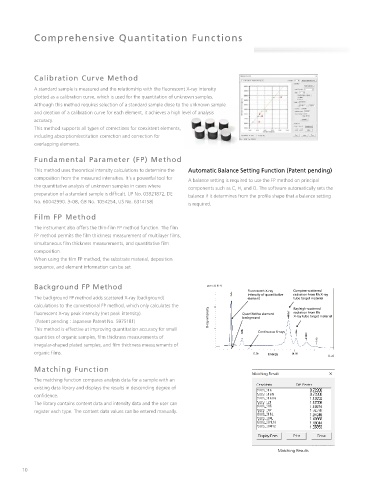

Comprehensive Quantitation Functions Functional Design

Calibration Curve Method Large Sample Chamber with Small Footprint

A standard sample is measured and the relationship with the fluorescent X-ray intensity Installed width is 20% smaller than the previous instrument (EDX-720) due to its compact body size.
plotted as a calibration curve, which is used for the quantitation of unknown samples. The EDX-8100 can accommodate samples up to a maximum size of W300 x D275 x approx. H100 mm.
Although this method requires selection of a standard sample close to the unknown sample
and creation of a calibration curve for each element, it achieves a high level of analysis
accuracy.
This method supports all types of corrections for coexistent elements, EDX-720 275mm 300mm
including absorption/excitation correction and correction for
overlapping elements.
EDX-8100
Fundamental Parameter (FP) Method approx.100mm

This method uses theoretical intensity calculations to determine the Automatic Balance Setting Function (Patent pending)
composition from the measured intensities. It's a powerful tool for A balance setting is required to use the FP method on principal
the quantitative analysis of unknown samples in cases where components such as C, H, and O. The software automatically sets the Body dimensions: W460 × D590 × H360mm
Comparison of footprint between
preparation of a standard sample is difficult. (JP No. 03921872, DE balance if it determines from the profile shape that a balance setting EDX-8100 and previous instrument
No. 60042990. 3-08, GB No. 1054254, US No. 6314158) is required.

Film FP Method
The instrument also offers the thin-film FP method function. The film
FP method permits the film thickness measurement of multilayer films, 460mm
simultaneous film thickness measurements, and quantitative film
composition.
When using the film FP method, the substrate material, deposition
sequence, and element information can be set.

Background FP Method
Fluorescent X-ray Compton-scattered High-Visibility LED Lamp
intensity of quantitative radiation from Rh X-ray
The background FP method adds scattered X-ray (background) element tube target material
When X-rays are generated, an X-ray indicator at the rear of the instrument and an X-RAYS ON lamp at the front turn on, so
calculations to the conventional FP method, which only calculates the Rayleigh-scattered
fluorescent X-ray peak intensity (net peak intensity). Quantitative element radiation from Rh that the instrument status can be monitored even from a distance.
X-ray tube target material
background
(Patent pending : Japanese Patent No. 5975181) X-ray intensity
This method is effective at improving quantitation accuracy for small
Continuous X-rays
quantities of organic samples, film thickness measurements of
irregular-shaped plated samples, and film thickness measurements of
organic films. Energy

Matching Function
The matching function compares analysis data for a sample with an
existing data library and displays the results in descending degree of
confidence.
The library contains content data and intensity data and the user can
register each type. The content data values can be entered manually.

Matching Results
