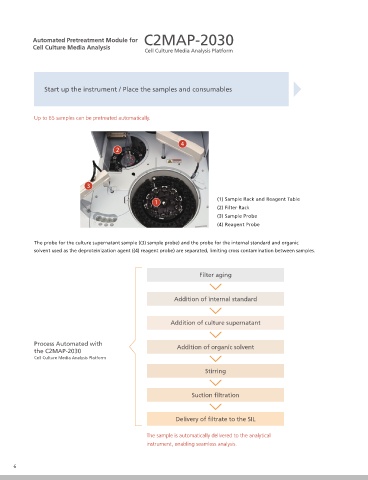

Automated Pretreatment Module for C2MAP-2030
Cell Culture Media Analysis
Cell Culture Media Analysis Platform

Start up the instrument / Place the samples and consumables Register sample information in the control software Start

Up to 65 samples can be pretreated automatically. The treated sample and the measurement results can be easily associated.

4
2

3
(1) Sample Rack and Reagent Table
1
(2) Filter Rack
(3) Sample Probe
(4) Reagent Probe

The probe for the culture supernatant sample ((3) sample probe) and the probe for the internal standard and organic
solvent used as the deproteinization agent ((4) reagent probe) are separated, limiting cross contamination between samples.

Everything from pretreatment to analysis can be carried out with the common sample ID.
Filter aging

Addition of internal standard

Addition of culture supernatant

Process Automated with Addition of organic solvent
the C2MAP-2030
Cell Culture Media Analysis Platform

Stirring

Suction filtration

Delivery of filtrate to the SIL In the control software, the progress of pretreatment and analysis is easily confirmed.

The sample is automatically delivered to the analytical Using the dedicated software, analysis operations are performed intuitively. No complicated
instrument, enabling seamless analysis. method settings are required.

C2MAP System
