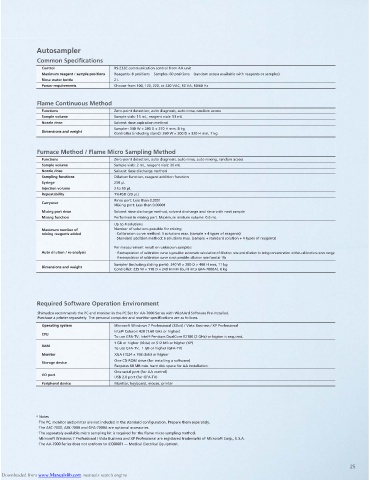

Page 25 - Shimadzu AA-7000

Autosampler
Common Specifications
Control RS-232C communication control from AA unit
Maximum reagent / sample positions Reagents: 8 positions Samples: 60 positions (random access available with reagents or samples)
Rinse water bottle 2 L
Power requirements Choose from 100, 120, 220, or 230 VAC, 50 VA, 50/60 Hz

Flame Continuous Method
Functions Zero-point detection, auto diagnosis, auto rinse, random access
Sample volume Sample vials: 15 mL, reagent vials: 53 mL
Nozzle rinse Solvent rinse aspiration method
Sampler: 340 W × 280 D × 270 H mm, 8 kg
Dimensions and weight
Controller (including stand): 260 W × 200 D × 320 H mm, 7 kg

Furnace Method / Flame Micro Sampling Method
Functions Zero-point detection, auto diagnosis, auto rinse, auto mixing, random access
Sample volume Sample vials: 2 mL, reagent vials: 20 mL
Nozzle rinse Solvent rinse discharge method
Sampling functions Dilution function, reagent addition function
Syringe 250 μL
Injection volume 2 to 90 μL
Repeatability 1%RSD (20 μL)
Rinse port: Less than 0.0001
Carryover
Mixing port: Less than 0.00001
Mixing port rinse Solvent rinse discharge method, solvent discharge and rinse with next sample
Mixing function Performed in mixing port. Maximum mixture volume: 0.6 mL
Up to 4 solutions
Maximum number of Number of solutions possible for mixing
mixing reagents added . Calibration curve method: 5 solutions max. (sample + 4 types of reagents)
. Standard addition method: 6 solutions max. (sample + standard solution + 4 types of reagents)
For measurement result on unknown samples:
Auto dilution / re-analysis . If extrapolation of calibration curve is possible: automatic calculation of dilution rate and dilution to bring concentration within calibration curve range
. If extrapolation of calibration curve is not possible: dilution rate fixed at 10x
Sampler (including sliding parts): 340 W × 280 D × 400 H mm, 11 kg
Dimensions and weight
Controller: 235 W × 110 D × 240 H mm (built into GFA-7000A), 6 kg

Required Software Operation Environment
Shimadzu recommends the PC and monitor in the PC Set for AA-7000 Series with WizAArd Software Pre-Installed.
Purchase a printer separately. The personal computer and monitor specifications are as follows.
Operating system Microsoft Windows 7 Professional (32bit) / Vista Business / XP Professional
Intel ® Celeron 420 (1.60 GHz or higher)
CPU
To use GFA-TV, Intel ® Pentium DualCore E2180 (2 GHz) or higher is required.
1 GB or higher (Vista) or 512 MB or higher (XP)
RAM
To use GFA-TV, 1 GB or higher (GFA-TV)
Monitor XGA (1024 × 768 dots) or higher
One CD-ROM drive (for installing a software)
Storage device
Requires 60 MB min. hard disk space for AA installation.
One serial port (for AA control)
I/O port
USB 2.0 port (for GFA-TV)
Peripheral device Monitor, keyboard, mouse, printer

* Notes
. The PC, monitor and printer are not included in the standard configuration. Prepare them separately.
. The ASC-7000, ASK-7000 and GFA-7000A are optional accessories.
. The separately available micro sampling kit is required for the flame micro sampling method.
. Microsoft Windows 7 Professional / Vista Business and XP Professional are registered trademarks of Microsoft Corp., U.S.A.
. The AA-7000 Series does not conform to IEC60601 –– Medical Electrical Equipment.
