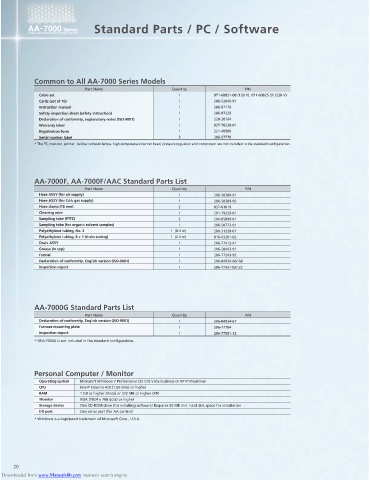

Page 20 - Shimadzu AA-7000

Standard Parts / PC / Software

Common to All AA-7000 Series Models
Part Name Quantity P/N
Cable set 1 071-60821-08 (120 V), 071-60825-51 (230 V)
Cards (set of 10) 1 206-52046-91
Instruction manual 1 206-97176
Safety inspection sheet (safety instruction) 1 206-97225
Declaration of conformity, explanatory notes (ISO-9001) 1 228-30164
Warranty label 1 037-70238-01
Registration form 1 221-40500
Serial number label 3 206-57770
* The PC, monitor, printer, hollow cathode lamps, high-temperature burner head, pressure regulator and compressor are not included in the standard configuration.

AA-7000F, AA-7000F/AAC Standard Parts List
Part Name Quantity P/N
Hose ASSY (for air supply) 1 206-50389-91
Hose ASSY (for C2H2 gas supply) 1 206-50389-92
Hose clamp (16 mm) 2 037-61019
Cleaning wire 1 201-79229-01
Sampling tube (PTFE) 2 204-05899-01
Sampling tube (for organic solvent samples) 1 206-50772-91
Polyethylene tubing, No. 3 1 (0.3 m) 200-31328-01
Polyethylene tubing, 8 × 1 (drain tubing) 1 (2.4 m) 016-43201-02
Drain ASSY 1 206-77413-41
Grease (in cup) 1 206-50442-91
Funnel 1 206-77243-92
Declaration of conformity, English version (ISO-9001) 1 206-84934-66/-68
Inspection report 1 206-77551-02/-22

AA-7000G Standard Parts List
Part Name Quantity P/N
Declaration of conformity, English version (ISO-9001) 1 206-84934-67
Furnace mounting plate 1 206-77704
Inspection report 1 206-77551-12
* GFA-7000A is not included in the standard configuration.

Personal Computer / Monitor
Operating system Microsoft Windows 7 Professional (32 bit) Vista Business or XP Professional
CPU Intel ® Celeron 420 (1.60 GHz) or higher
RAM 1 GB or higher (Vista) or 512 MB or higher (XP)
Monitor XGA (1024 × 768 dots) or higher
Storage device One CD-ROM drive (for installing software) Requires 60 MB min. hard disk space for installation
I/O port One serial port (for AA control)
* Windows is a registered trademark of Microsoft Corp., U.S.A.
