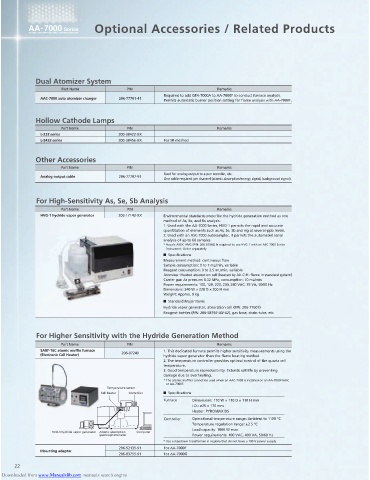

Optional Accessories / Related Products

Dual Atomizer System
Part Name P/N Remarks
Required to add GFA-7000A to AA-7000F to conduct furnace analysis.
AAC-7000 auto atomizer changer 206-77701-41
Permits automatic burner position setting for flame analysis with AA-7000F.

Hollow Cathode Lamps
Part Name P/N Remarks
L-233 series 200-38422-XX
L-2433 series 200-38456-XX For SR method

Other Accessories
Part Name P/N Remarks
Used for analog output to a pen recorder, etc.
Analog output cable 206-77707-91
One cable required per channel (atomic absorption/energy signal, background signal).

For High-Sensitivity As, Se, Sb Analysis
Part Name P/N Remarks
HVG-1 hydride vapor generator 206-17143-XX Environmental standards prescribe the hydride generation method as one
method of As, Se, and Sb analysis.
1. Used with the AA-7000 Series, HVG-1 permits the rapid and accurate
quantitation of elements such as As, Se, Sb and Hg at several-ppb levels.
2. Used with an ASC-7000 autosampler, it permits the automated serial
analysis of up to 60 samples.
* Nozzle ASSY, HVG (P/N: 206-67563) is required to use HVG-1 with an ASC-7000 Series
instrument. Order separately.
ISpecifications
Measurement method: continuous flow
Sample consumption: 0 to 7 mL/min, variable
Reagent consumption: 0 to 2.5 mL/min, variable
Atomizer: Heated absorption cell (heated by Air-C2H2 flame in standard system)
Carrier gas: Ar pressure: 0.32 MPa, consumption: 70 mL/min
Power requirements: 100, 120, 220, 230, 240 VAC, 35 VA, 50/60 Hz
Dimensions: 340 W × 220 D × 200 H mm
Weight: Approx. 9 kg
IStandard Major Items
Hydride vapor generator, absorption cell (P/N: 206-77607)
Reagent bottles (P/N: 206-58792-40/-42), gas hose, drain tube, etc.

For Higher Sensitivity with the Hydride Generation Method
Part Name P/N Remarks
SARF-16C atomic muffle furnace 1. This dedicated furnace permits higher sensitivity measurements using the
(Electronic Cell Heater) 208-97249 hydride vapor generator than the flame heating method.
2. The temperature controller provides optimal control of the quartz cell
temperature.
3. Good temperature reproducibility. Extends cell life by preventing
damage due to overheating.
* The atomic muffler cannot be used when an AAC-7000 is installed on an AA-7000F/AAC
or AA-7000F.
Te
Temperature sensor
Cell heater
Cell he Controller ISpecifications
Furnace Dimensions: 170 W × 110 D × 110 H mm
I.D.: ø25 × 170 mm
Heater: PYROMAX DS
Controller Operational temperature range: Ambient to 1100 °C
Temperature regulation range: ±2.5 °C
Load capacity: 1000 W max.
HVG-1 hydride vapor generator Atomic absorption Computer
spectrophotometer Power requirements: 100 VAC, 400 VA, 50/60 Hz
* Use a stepdown transformer in regions that do not have a 100 V power supply.
206-52135-91 For AA-7000F
Mounting adaptor
206-83755-91 For AA-7000G
22
