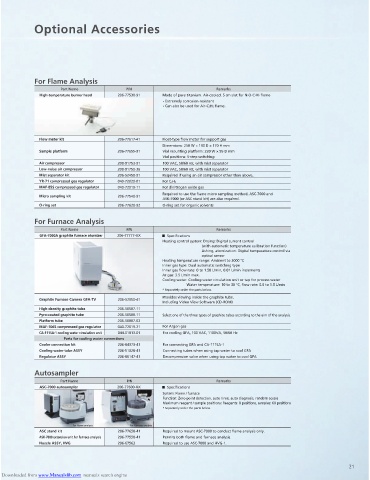

Optional Accessories

For Flame Analysis
Part Name P/N Remarks
High-temperature burner head 206-77530-91 Made of pure titanium. Air-cooled. 5 cm slot for N2O-C2H2 flame
. Extremely corrosion-resistant
. Can also be used for Air-C2H2 flame.

Flow meter kit 206-77617-41 Float-type flow meter for support gas
Dimensions: 250 W × 130 D × 170 H mm
Sample platform 206-77655-91 Vial mounting platform: 220 W × 95 D mm
Vial positions: 5-step switching
Air compressor 208-91753-91 100 VAC, 50/60 Hz, with mist separator
Low-noise air compressor 208-91750-36 100 VAC, 50/60 Hz, with mist separator
Mist separator kit 206-52458-91 Required if using an air compressor other than above.
YR-71 compressed gas regulator 040-72020-01 For C2H2
MAF-85S compressed gas regulator 040-72019-11 For dinitrogen oxide gas
Required to use the flame micro sampling method. ASC-7000 and
Micro sampling kit 206-77540-91
ASK-7000 (or ASC stand kit) are also required.
O-ring set 206-77620-92 O-ring set for organic solvents
For Furnace Analysis
Part Name P/N Remarks
GFA-7000A graphite furnace atomizer 206-77777-XX ISpecifications
Heating control system: Drying: Digital current control
(with automatic temperature calibration function)
Ashing, atomization: Digital temperature control via
optical sensor
Heating temperature range: Ambient to 3000 °C
Inner gas type: Dual automatic switching type
Inner gas flow rate: 0 to 1.50 L/min, 0.01 L/min increments
Ar gas: 3.5 L/min max.
Cooling water: Cooling water circulation unit or tap for process water
Water temperature: 10 to 30 °C, flow rate: 0.6 to 1.5 L/min
* Separately order the parts below.
Provides viewing inside the graphite tube.
Graphite Furnace Camera GFA-TV 206-52950-41
Including Video View Software (CD-ROM)
High-density graphite tube 206-50587-11
Pyro-coated graphite tube 206-50588-11 Select one of the three types of graphite tubes according to the aim of the analysis.
Platform tube 206-50887-02
MAF-106S compressed gas regulator 040-72019-21 For Argon gas
CA-1115A-1 cooling water circulation unit 044-01813-01 For cooling GFA, 100 VAC, 1100VA, 50/60 Hz
Parts for cooling water connections
Cooler connection kit 206-84373-41 For connecting GFA and CA-1115A-1
Cooling water tube ASSY 206-51028-41 Connecting tubes when using tap water to cool GFA
Regulator ASSY 206-86147-41 Decompression valve when using tap water to cool GFA

Autosampler
Part Name P/N Remarks
ASC-7000 autosampler 206-77600-XX ISpecifications
System: Flame / furnace
Function: Zero-point detection, auto rinse, auto diagnosis, random access
Maximum reagent / sample positions: Reagents: 8 positions, samples: 60 positions
* Separately order the parts below.

For flame analysis For furnace analysis
ASC stand kit 206-77650-41 Required to mount ASC-7000 to conduct flame analysis only.
ASK-7000 extension unit for furnace analysis 206-77550-41 Permits both flame and furnace analysis.
Nozzle ASSY, HVG 206-67563 Required to use ASC-7000 and HVG-1.

21
