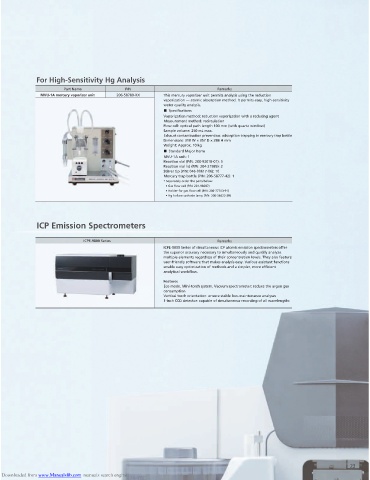

Page 23 - Shimadzu AA-7000

For High-Sensitivity Hg Analysis
Part Name P/N Remarks
MVU-1A mercury vaporizer unit 206-58780-XX This mercury vaporizer unit permits analysis using the reduction
vaporization –– atomic absorption method. It permits easy, high-sensitivity
water quality analysis.
ISpecifications
Vaporization method: reduction vaporization with a reducing agent
Measurement method: recirculation
Flow cell: optical path length 100 mm (with quartz window)
Sample volume: 250 mL max.
Exhaust contamination prevention: adsorption trapping in mercury trap bottle
Dimensions: 310 W × 357 D × 288 H mm
Weight: Approx. 10 kg
IStandard Major Items
MVU-1A unit: 1
Reaction vial (P/N: 200-93018-01): 5
Reaction vial lid (P/N: 204-21989): 2
Stirrer tip (P/N: 046-00617-06): 10
Mercury trap bottle (P/N: 206-58777-42): 1
* Separately order the parts below.
s 'AS FLOW CELL 0 .
s (OLDER FOR GAS FLOW CELL 0 .
s (G HOLLOW CATHODE LAMP 0 .

ICP Emission Spectrometers

ICPE-9800 Series Remarks
ICPE-9800 Series of simultaneous ICP atomic emission spectrometers offer
the superior accuracy necessary to simultaneously and quickly analyze
multiple elements regardless of their concentration levels. They also feature
user-friendly software that makes analysis easy. Various assistant functions
enable easy optimization of methods and a simpler, more efficient
analytical workflow.
Features
Eco mode, Mini-torch system, Vacuum spectrometer: reduce the argon gas
Eco mode, Mini-torch system, Vacuum spectrometer: reduce the argon gas
consumption
consumption
Vertical torch orientation: ensure stable low-maintenance analyses
Vertical torch orientation: ensure stable low-maintenance analyses
1-inch CCD detector: capable of simultaneous recording of all wavelengths
1-inch CCD detector: capable of simultaneous recording of all wavelengths

23
