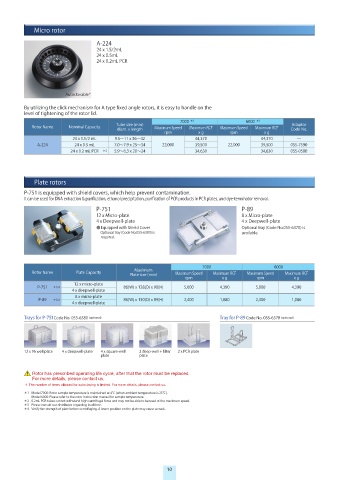

Page 10 - Kubota - 7000

Micro rotor

A-224
24 x 1.5/2mL
24 x 0.5mL
24 x 0.2mL PCR

Autoclavable ＊

By utilizing the click mechanism for A type fixed angle rotors, it is easy to handle on the
level of tightening of the rotor lid.
7000 ＊1 6000 ＊1
Tube size (mm) Adaptor
Rotor Name Nominal Capacity Maximum Speed Maximum RCF Maximum Speed Maximum RCF
diam. x length Code No.
rpm x g rpm x g
24 x 1.5/2 mL 9.5〜11 x 36〜42 44,370 44,370 ―
A-224 24 x 0.5 mL 7.0〜7.9 x 25〜34 22,000 39,500 22,000 39,500 055-7590
24 x 0.2 mL PCR ＊2 5.9〜6.3 x 20〜24 34,630 34,630 055-0500

Plate rotors

P-751 is equipped with shield covers, which help prevent contamination.
It can be used for DNA extraction & purification, ethanol precipitation, purification of PCR products in PCR plates, and dye-terminator removal.
P-751 P-89
12 x Micro-plate 8 x Micro-plate
4 x Deepwell-plate 4 x Deepwell-plate
●Equipped with Shield Cover Optional tray (Code No.055-6370) is
Optional tray (Code No.055-6380) is available.
required.

7000 6000
Maximum
Rotor Name Plate Capacity Maximum Speed Maximum RCF Maximum Speed Maximum RCF
Plate size (mm)
rpm x g rpm x g
12 x micro-plate
P-751 ＊3,4 86(W) x 128(D) x 90(H) 5,000 4,390 5,000 4,390
4 x deepwell-plate
8 x micro-plate
P-89 ＊3,4 86(W) x 130(D) x 89(H) 2,400 1,080 2,400 1,080
4 x deepwell-plate
Trays for P-751 Code No. 055-6380 (optional) Tray for P-89 Code No. 055-6370 (optional)

#5
12 x 96 well plate 4 x deepwell-plate 4 x square-well 2 deep-well + filter 2 x PCR plate
plate plate

Rotor has prescribed operating life cycle, after that the rotor must be replaced.
For more details, please contact us.
＊ The number of times allowed for autoclaving is limited. For more details, please contact us.
＊1 Model 7000: Rotor sample temperature is maintained at 4℃ (when ambient temperature is 25℃).
Model 6000: Please refer to the rotor instruction manual for sample temperature.
＊2 0.2mL PCR tubes cannot withstand high centrifugal force and may not be able to be used at the maximum speed.
＊3 Please consult our distributor regarding lead time.
＊4 Verify the strength of plate before centrifuging. A lower position on the plate may cause a crack.

10
