P. 12

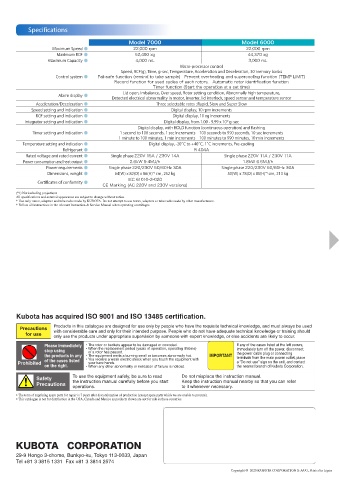

Specifications

Model 7000 Model 6000
Maximum Speed ● 22,000 rpm 22,000 rpm
Maximum RCF ● 52,490 xg 44,370 xg
Maximum Capacity ● 4,000 mL 3,000 mL
Micro-processor control
Speed, RCF(g), Time, g·sec, Temperature, Acceleration and Deceleration, 30 memory banks
Control system ● Fail-safe function (remind to take sample) Prevent overheating and supercooling function (TEMP LIMIT)
Record function for used cycles of each rotors. Automatic rotor identification function
Timer function (Start the operation at a set time)
Lid open, Imbalance, Over speed, Rotor setting condition, Abnormally high temperature,
Alarm display ●
Detected electrical abnormality in motor, inverter, lid interlock, speed sensor and temperature sensor
Acceleration/Deceleration ● Three selectable rates : Rapid, Slow and Super Slow
Speed setting and indication ● Digital display, 10 rpm increments
RCF setting and indication ● Digital display, 10 xg increments
9
Integrator setting and indication ● Digital display, from 1.00 - 9.99 x 10 g·sec
Digital display, with HOLD function (continuous operation) and flashing
Timer setting and indication ● 1 second to 100 seconds, 1 sec increments 100 seconds to 990 seconds, 10 sec increments
1 minute to 100 minutes, 1 min increments 100 minutes to 990 minutes, 10 min increments
Temperature setting and indication ● Digital display, -20˚C to +40˚C, 1˚C increments, Pre-cooling
Refrigerant ● R 404A
Rated voltage and rated current ● Single phase 220V 15A / 230V 14A Single phase 220V 11A / 230V 11A
Power consumption and heat output ● 2.6kW 9.4MJ/h 1.8kW 6.5MJ/h
Power requirements ● Single phase 220/230V 50/60Hz 30A Single phase 220/230V 50/60Hz 30A
Dimensions, weight ● 64(W) x 82(D) x 86(H) cm, 252 kg 50(W) x 78(D) x 85(H) cm, 213 kg
*1
*1
IEC 61010-2-020
Certificates of conformity ● ―
CE Marking (AC 220V and 230V versions)
(*1) Not including projections
All specifications and external appearance are subject to change without notice.
* Use only rotors, adaptors and tube racks made by KUBOTA. Do not attempt to use rotors, adaptors or tube racks made by other manufacturers.
* Follow all instructions in the relevant Instruction & Service Manual when operating centrifuges.

Kubota has acquired ISO 9001 and ISO 13485 certification.
Products in this catalogue are designed for use only by people who have the requisite technical knowledge, and must always be used
Precautions
with considerable care and only for their intended purpose. People who do not have adequate technical knowledge or training should
for use
only use the products under appropriate supervision by someone with expert knowledge, or else accidents are likely to occur.
Please immediately • The rotor or buckets appear to be damaged or corroded. If any of the cases listed at the left occurs,
• When the replacement period (years of operation, operating lifetime)
stop using of a rotor has passed. immediately turn off the power, disconnect
the power cable plug or connecting
the products in any • The equipment emits a burning smell or becomes abnormally hot. IMPORTANT terminals from the main power outlet, place
of the cases listed • You receive a weak electric shock when you touch the equipment with a “Do not use” sign on the unit, and contact
Prohibited your bare hands.
on the right. • When any other abnormality or indication of failure is noticed. the nearest branch of Kubota Corporation.
Safety To use the equipment safely, be sure to read Do not misplace the instruction manual.
the instruction manual carefully before you start
Keep the instruction manual nearby so that you can refer
Precautions
operations. to it whenever necessary.
• The term of supplying spare parts for repair is 7 years after discontinuation of production (except spare parts which we are unable to procure).
• This catalogue is not for distribution in the USA, Canada and Mexico as products shown are not for sale in these countries.
