Application  No.L492A
    News

            n Comprehensive Separation of Triglycerides in     partition number in the second dimension.
              Borage Oil with LCMS-IT-TOF Detection            Use of the LCMS-IT-TOF as the detector for precise mass
            As mentioned above, separation in the first dimension in this   measurement in the second dimension permits detailed
            analysis is conducted based on the presence or absence or the   qualitative analysis of the many components eluted following
            difference in the number of double bonds in the fatty acid   separation by the Nexera-e. The mass spectra corresponding
            side chain. When a silver ion column is used, the greater the   to the white-circled peaks A, B and C of Fig. 2 are shown in
            number of double bonds in the triglyceride, the stronger the   the lower part of Fig. 2. The structural information was
            retention will be. However, it is also possible that retention   obtained from the peak of diglyceride with one side chain
            will be affected depending on the positions of the double   detached, and the triglyceride structure were determined as
            bonds or the side chain length. In the second-dimension   follows:
            reversed phase separation, two-solution gradient elution is   A  : POP
            adopted in which, due to the high hydrophobicity of   B    : OOP
            triglycerides, neither water nor buffer solution, etc., is used,   C  : PγLnP
            but a non-aqueous organic solvent is used for the mobile   Where,
            phase. With this separation mode, elution tends to proceed in   P  : Palmitic acid
            the order obtained by subtracting twice the number of   O  : Oleic acid
            double bonds from the total number of triglyceride carbon   γLn  : γ-Linolenic acid
            atoms, which is referred to as the partition number. The top   Since these compounds each have one to three double
            portion of Fig. 2 shows a two-dimensional plot drawn based   bonds, they are eluted from the first-dimension column
            on the output of the LCMS-IT-TOF mass spectrometer. To   in this order. As lipid-related compounds often display
            facilitate identification of triglycerides using the order of   no UV absorption, and gradient elution cannot be
            elution described above, a grid is drawn superimposed on the   applied with differential refractive index detection, a
            plot. From this plot, it can be seen how separation is   combination of the Nexera-e and ELSD, or a triple
            conducted according to the difference in the number of   quadrupole or LCMS-IT-TOF mass spectrometer can be
            double bonds in the first dimension, and the difference in   considered essential for exhaustive analysis in this field.




                                                                       PN  : carbon number
                                                                       NDB : number of double bonds

                               A     B


                                             C
















                           PO                                                          ЍLnP
                                                          PO
                                    POP                    OO      OOP              PP            PЍLnP
                                    DB = 1                         DB = 2                         DB = 3
                                                                                           [M+H]
                                                                                               +
                          PP

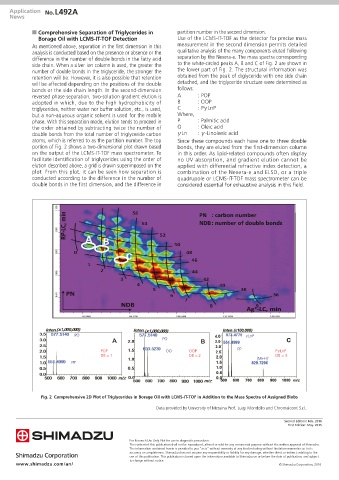

               Fig. 2  Comprehensive 2D Plot of Triglycerides in Borage Oil with LCMS-IT-TOF in Addition to the Mass Spectra of Assigned Blobs

                                                        Data provided by University of Messina Prof. Luigi Mondello and Chromaleont S.r.l.

                                                                                                     Second Edition: Feb. 2016
                                                                                                      First Edition: May. 2015

                                               For Research Use Only. Not for use in diagnostic procedures.
                                               The content of this publication shall not be reproduced, altered or sold for any commercial purpose without the written approval of Shimadzu.
                                               The information contained herein is provided to you "as is" without warranty of any kind including without limitation warranties as to its
                                               accuracy or completeness. Shimadzu does not assume any responsibility or liability for any damage, whether direct or indirect, relating to the
                                               use of this publication. This publication is based upon the information available to Shimadzu on or before the date of publication, and subject
                                               to change without notice.
