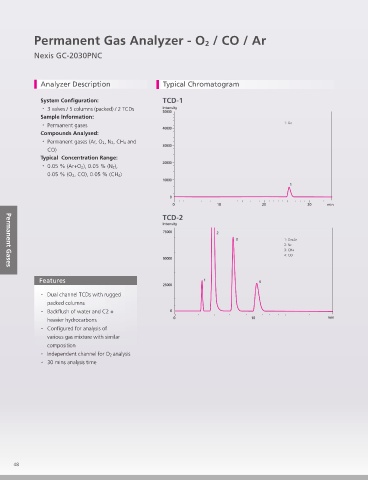

Permanent Gas Analyzer - O 2 / CO / Ar
Nexis GC-2030PNC
Analyzer Description Typical Chromatogram
System Configuration:
・ 3 valves / 5 columns (packed) / 2 TCDs
Sample Information:
・ Permanent gases
Compounds Analysed:
・ Permanent gases (Ar, O 2, N 2, CH 4 and
CO)
Typical Concentration Range:
・ 0.05 % (Ar+O 2), 0.05 % (N 2),
0.05 % (O 2, CO), 0.05 % (CH 4)
Permanent Gases
Features
・ Dual channel TCDs with rugged
packed columns
・ Back ush of water and C2 +
heavier hydrocarbons
・ Con gured for analysis of
various gas mixture with similar
composition
・ Independent channel for O 2 analysis
・ 30 mins analysis time
