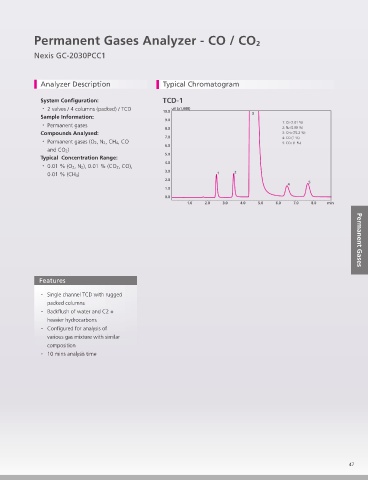

Permanent Gases Analyzer - CO / CO 2

Nexis GC-2030PCC1

Analyzer Description Typical Chromatogram

System Configuration:
・ 2 valves / 4 columns (packed) / TCD
Sample Information:
・ Permanent gases
Compounds Analysed:
・ Permanent gases (O 2, N 2, CH 4, CO
and CO 2)
Typical Concentration Range:
・ 0.01 % (O 2, N 2), 0.01 % (CO 2, CO),
0.01 % (CH 4)

Features Permanent Gases

・ Single channel TCD with rugged
packed columns
・ Back ush of water and C2 +
heavier hydrocarbons
・ Con gured for analysis of
various gas mixture with similar
composition
・ 10 mins analysis time
