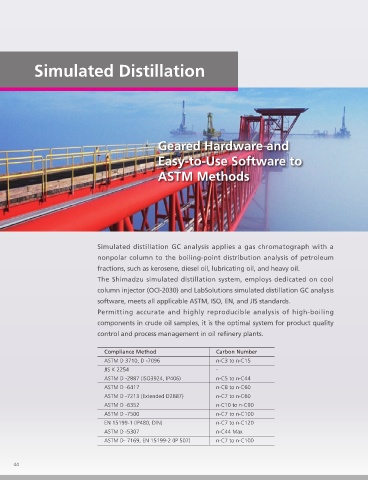

Simulated Distillation
Geared Hardware and
Easy-to-Use Software to
ASTM Methods
Simulated distillation GC analysis applies a gas chromatograph with a
nonpolar column to the boiling-point distribution analysis of petroleum
fractions, such as kerosene, diesel oil, lubricating oil, and heavy oil.
The Shimadzu simulated distillation system, employs dedicated on cool
column injector (OCI-2030) and LabSolutions simulated distillation GC analysis
software, meets all applicable ASTM, ISO, EN, and JIS standards.
Permitting accurate and highly reproducible analysis of high-boiling
components in crude oil samples, it is the optimal system for product quality
control and process management in oil refinery plants.
Compliance Method Carbon Number
ASTM D 3710, D -7096 n-C3 to n-C15
JIS K 2254
ASTM D -2887 (ISO3924, IP406) n-C5 to n-C44
ASTM D -6417 n-C8 to n-C60
ASTM D -7213 (Extended D2887) n-C7 to n-C60
ASTM D -6352 n-C10 to n-C90
ASTM D -7500 n-C7 to n-C100
EN 15199-1 (IP480, DIN) n-C7 to n-C120
ASTM D -5307 n-C44 Max
ASTM D- 7169, EN 15199-2 (IP 507) n-C7 to n-C100
