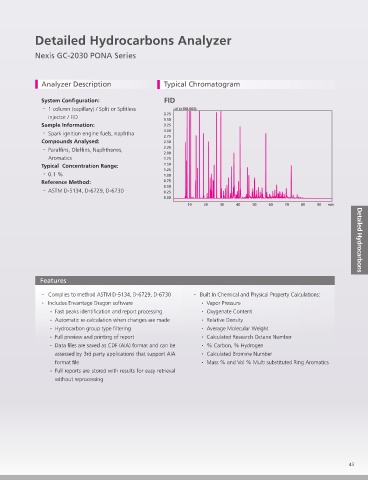

Detailed Hydrocarbons Analyzer

Nexis GC-2030 PONA Series

Analyzer Description Typical Chromatogram

System Configuration:
・ 1 column (capillary) / Split or Splitless
injector / FID
Sample Information:
・ Spark ignition engine fuels, naphtha
Compounds Analysed:
・ Paraf ns, Olef ns, Naphthenes,
Aromatics
Typical Concentration Range:
・ 0.1 %
Reference Method:
・ ASTM D-5134, D-6729, D-6730

Features Detailed Hydrocarbons

・ Complies to method ASTM D-5134, D-6729, D-6730 ・ Built In Chemical and Physical Property Calculations:
・ Includes Envantage Dragon software ・ Vapor Pressure
・ Fast peaks identi cation and report processing ・ Oxygenate Content
・ Automatic re-calculation when changes are made ・ Relative Density
・ Hydrocarbon group type ltering ・ Average Molecular Weight
・ Full preview and printing of report ・ Calculated Research Octane Number

・ Data les are saved as CDF (AIA) format and can be ・ % Carbon, % Hydrogen
assessed by 3rd party applications that support AIA ・ Calculated Bromine Number
format le ・ Mass % and Vol % Multi substituted Ring Aromatics
・ Full reports are stored with results for easy retrieval
without reprocessing
