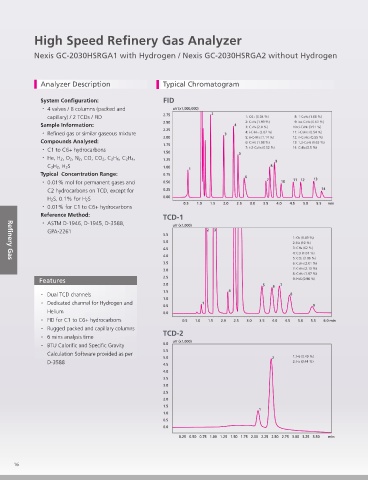

High Speed Re nery Gas Analyzer

            Nexis GC-2030HSRGA1 with Hydrogen / Nexis GC-2030HSRGA2 without Hydrogen




              Analyzer Description                     Typical Chromatogram


              System Configuration:
              ・ 4 valves / 8 columns (packed and
                 capillary) / 2 TCDs / FID
              Sample Information:
              ・ Re  ned gas or similar gaseous mixture
              Compounds Analysed:
              ・ C1 to C6+ hydrocarbons
              ・ He, H 2, O 2, N 2, CO, CO 2, C 2H 6, C 2H 4,
                 C 2H 2, H 2S
              Typical  Concentration Range:
              ・ 0.01% mol for permanent gases and
                 C2 hydrocarbons on TCD, except for
                 H 2S, 0.1% for H 2S
              ・ 0.01% for C1 to C6+ hydrocarbons
              Reference Method:
              ・ ASTM D-1946, D-1945, D-3588,
                 GPA-2261





    Re nery Gas

              Features


              ・  Dual TCD channels
              ・  Dedicated channel for Hydrogen and
                 Helium
              ・  FID for C1 to C6+ hydrocarbons
              ・  Rugged packed and capillary columns
              ・  6 mins analysis time
              ・  BTU Calori  c and Speci  c Gravity
                 Calculation Software provided as per
                 D-3588
