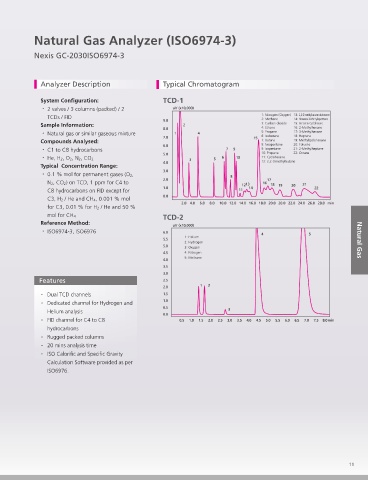

Extended Natural Gas Analyzer (Dual Oven)   Natural Gas Analyzer (ISO6974-3)

            Nexis GC-2030ISO6974-3




              Analyzer Description                     Typical Chromatogram


              System Configuration:
              ・ 2 valves / 3 columns (packed) / 2
                 TCDs / FID
              Sample Information:
              ・ Natural gas or similar gaseous mixture
              Compounds Analysed:
              ・ C1 to C8 hydrocarbons
              ・ He, H 2, O 2, N 2, CO 2
              Typical  Concentration Range:
              ・ 0.1 % mol for permanent gases (O 2,
                 N 2, CO 2) on TCD, 1 ppm for C4 to
                 C8 hydrocarbons on FID except for
                 C3, H 2 / He and CH 4, 0.001 % mol
                 for C3, 0.01 % for H 2 / He and 50 %
                 mol for CH 4
              Reference Method:
              ・ ISO6974-3, ISO6976                                                                                     Natural Gas








              Features


              ・  Dual TCD channels
              ・  Dedicated channel for Hydrogen and
                 Helium analysis
              ・  FID channel for C4 to C8
                 hydrocarbons
              ・  Rugged packed columns
              ・  20 mins analysis time
              ・  ISO Calori  c and Speci  c Gravity
                 Calculation Software provided as per
                 ISO6976.
