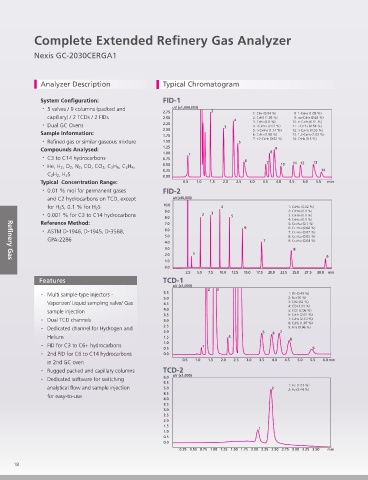

Complete Extended Re nery Gas Analyzer

            Nexis GC-2030CERGA1




              Analyzer Description                     Typical Chromatogram


              System Configuration:
              ・ 5 valves / 9 columns (packed and
                 capillary) / 2 TCDs / 2 FIDs
              ・ Dual GC Ovens
              Sample Information:
              ・ Re  ned gas or similar gaseous mixture
              Compounds Analysed:
              ・ C3 to C14 hydrocarbons
              ・ He, H 2, O 2, N 2, CO, CO 2, C 2H 6, C 2H 4,
                 C 2H 2, H 2S
              Typical  Concentration Range:
              ・ 0.01 % mol for permanent gases
                 and C2 hydrocarbons on TCD, except
                 for H 2S, 0.1 % for H 2S
              ・ 0.001 % for C3 to C14 hydrocarbons
              Reference Method:
              ・ ASTM D-1946, D-1945, D-3588,

                 GPA-2286



    Re nery Gas

              Features


              ・  Multi sample-type injectors -
                 Vaporizer/ Liquid sampling valve/ Gas
                 sample injection
              ・  Dual TCD channels
              ・  Dedicated channel for Hydrogen and
                 Helium
              ・  FID for C3 to C6+ hydrocarbons
              ・  2nd FID for C6 to C14 hydrocarbons
                 in 2nd GC oven
              ・  Rugged packed and capillary columns
              ・  Dedicated software for switching
                 analytical   ow and sample injection
                 for easy-to-use
