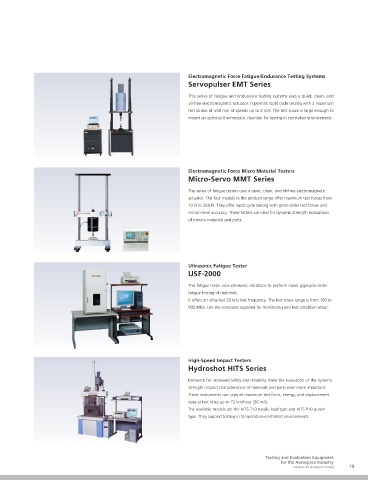

Electromagnetic Force Fatigue/Endurance Testing Systems
Servopulser EMT Series

This series of fatigue and endurance testing systems uses a quiet, clean, and
oil-free electromagnetic actuator. It permits rapid cycle testing with a maximum
test stroke of ±50 mm at speeds up to 2 m/s. The test space is large enough to
mount an optional thermostatic chamber for testing in controlled environments.

Electromagnetic Force Micro Material Testers
Micro-Servo MMT Series

This series of fatigue testers uses a quiet, clean, and oil-free electromagnetic
actuator. The four models in the product range offer maximum test forces from
10 N to 500 N. They offer rapid cycle testing with gram-order test forces and
micron-level accuracy. These testers are ideal for dynamic strength evaluations
of minute materials and parts.

Ultrasonic Fatigue Tester
USF-2000

This fatigue tester uses ultrasonic vibrations to perform rapid, gigacycle-order
fatigue testing of materials.
It offers an ultra-fast 20 kHz test frequency. The test stress range is from 180 to
900 MPa. Use the computer supplied for monitoring and test condition setup.

High-Speed Impact Testers
Hydroshot HITS Series
Demands for increased safety and reliability make the evaluation of the dynamic
strength (impact characteristics) of materials and parts even more important.
These instruments can capture maximum test force, energy, and displacement
data at test rates up to 72 km/hour (20 m/s).
The available models are the HITS-T10 tensile load type and HITS-P10 punch
type. They support testing in temperature-controlled environments.

Testing and Evaluation Equipment
for the Aerospace Industry
Solutions for Aerospace Testing 19
